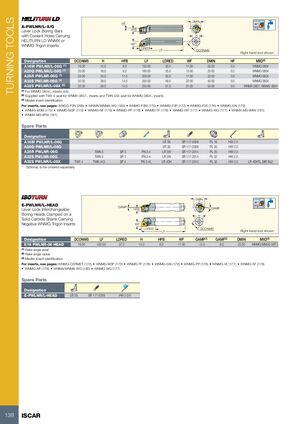

TURNING TOOLS DMIN HF 95º A-PWLNR/L-X/G Lever Lock Boring Bars HFB with Coolant Holes Carrying H HELITURN LD WNMX or WF WNMG Trigon Inserts LDRED LF DCONMS Right hand tool shown Designation DCONMS H HFB LF LDRED WF DMIN HF MIID(3) A16M PWLNR/L-06G (1) 16.00 15.0 8.0 150.00 30.0 11.00 25.00 0.5 WNMG 0604 A20Q PWLNR/L-06G (1) 20.00 18.0 9.2 180.00 35.0 13.00 25.00 0.2 WNMG 0604 A25R PWLNR-06G (1) 25.00 23.0 11.5 200.00 35.0 17.00 32.00 0.0 WNMG 0604 A32S PWLNR-06G (1) 32.00 29.0 14.5 250.00 48.0 22.00 40.00 0.0 WNMG 0604 A32S PWLNR/L-08X (2) 32.00 29.0 14.5 250.00 51.0 21.00 54.00 0.0 WNMX 0807, WNMG 0804 (1) For WNMG 0604.. inserts only (2) Supplied with TWX 4 seat for WNMX 0807.. inserts and TWN 443 seat for WNMG 0804.. inserts (3) Master insert identification For inserts, see pages: WNGG-F3N (266) • WNMA/WNMA-WG (180) • WNMG-F3M (175) • WNMG-F3P (172) • WNMG-F3S (176) • WNMG-GN (179) • WNMG-M3M (175) • WNMG-M3P (173) • WNMG-NF (176) • WNMG-PP (178) • WNMG-TF (178) • WNMG-WF (177) • WNMG-WG (177) • WNMX-M3/4MW (181) • WNMX-M3/4PW (181) Spare Parts Designation A16M PWLNR/L-06G LR 3S SR 117-2009 PL 16 HW 2.0 A20Q PWLNR/L-06G LR 3S SR 117-2009 PL 20 HW 2.0 A25R PWLNR-06G TWN 3 SP 3 PN 3-4 LR 3W SR 117-2014 PL 25 HW 2.5 A32S PWLNR-06G TWN 3 SP 3 PN 3-4 LR 3W SR 117-2014 PL 32 HW 2.5 A32S PWLNR/L-08X TWX 4 TWN 443 SP 4 PN 3-4L LR 4DH SR 117-2010 PL 32 HW 3.0 LR 4DHTL (MR INJ)* * Optional, to be ordered separately DMIN 95º E-PWLNR/L-HEAD GAMP Lever Lock Interchangeable HFB GAMF Boring Heads Clamped on a H Solid Carbide Shank Carrying Negative WNMG Trigon Inserts WF LDRED DCONMS LF Right hand tool shown Designation DCONMS LF LDRED H HFB WF GAMP(1) GAMF(2) DMIN MIID(3) E16 PWLNR-06 HEAD 16.00 200.00 37.0 15.0 8.0 11.00 -14.0 -6.0 20.00 WNMG/WNGG 06T3 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: WNMG-CERMET (173) • WNMG-M3P (173) • WNMG-TF (178) • WNMG-GN (179) • WNMG-PP (178) • WNMG-VL (177) • WNMG-SF (176) • WNMG-NF (176) • WNMA/WNMA-WG (180) • WNMG-WG (177) Spare Parts Designation E-PWLNR/L-HEAD LR 3S SR 117-2009 HW 2.0/5 138 ISCAR
