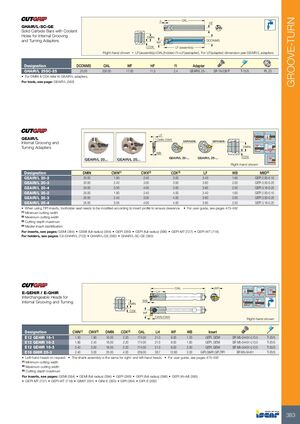

GROOVE-TURN f1 OAL HF GHAIR/L-SC-GE Solid Carbide Bars with Coolant Holes for Internal Grooving DMIN and Turning Adapters WF DCONMS CDX LF (assembly) Right-hand shown • LF(assembly)=OAL(holder)-f1+LF(aadapter). For LF(adapter) dimension,see GEAIR/L adapters Designation DCONMS OAL WF HF f1 Adapter GHAIR/L 25SC-25 25.00 200.00 17.00 11.5 2.4 GEAIR/L 25-... SR 16-236 P T-15/5 PL 25 • For DMIN & CDX refer to GEAIR/L adapters. For tools, see page: GEAIR/L (383) LF GEAIR/L CWN-CWX GEPI/GEMI.. GEPI/GEMI.. Internal Grooving and Turning Adapters DMIN WB GEAIR/L 20-... GEAIR/L 25-... CDX Right-hand shown Designation DMIN CWN(1) CWX(2) CDX(3) LF WB MIID(4) GEAIR/L 20-2 20.00 1.90 2.40 3.00 3.40 1.60 GEPI 2.00-0.10 GEAIR/L 20-3 20.00 2.40 3.00 3.00 3.60 2.00 GEPI 3.00-0.20 GEAIR/L 20-4 20.00 3.00 4.00 3.00 3.85 2.50 GEPI 3.18-0.20 GEAIR/L 25-2 25.00 1.90 2.40 4.00 3.40 1.60 GEPI 2.00-0.10 GEAIR/L 25-3 25.00 2.40 3.00 4.00 3.60 2.00 GEPI 3.00-0.20 GEAIR/L 25-4 25.00 3.00 4.00 4.00 3.85 2.50 GEPI 3.18-0.20 • When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance • For user guide, see pages 475-492 (1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum (4) Master insert identification For inserts, see pages: GEMI (384) • GEMI (full radius) (384) • GEPI (385) • GEPI (full radius) (386) • GEPI-MT (727) • GEPI-WT (718) For holders, see pages: C#-GHAIR/L (703) • GHAIR/L-GE (382) • GHAIR/L-SC-GE (383) OAL WF LH E-GEHIR / E-GHIR Interchangeable Heads for Internal Grooving and Turning WB DMIN CDX WF CWN-CWX Right-hand shown Designation CWN(1) CWX(2) DMIN CDX(3) OAL LH WF WB Insert E12 GEHIR 16-1 1.50 1.90 16.00 2.20 174.00 21.0 9.00 1.20 GEPI, GEMI SR M5-04451-L10.5 T-20/5 E12 GEHIR 16-2 1.90 2.40 16.00 2.20 174.00 21.0 9.00 1.60 GEPI, GEMI SR M5-04451-L10.5 T-20/5 E12 GEHIR 16-3 2.40 3.00 16.00 2.20 174.00 21.0 9.00 2.00 GEPI, GEMI SR M5-04451-L10.5 T-20/5 E16 GHIR 25-3 2.40 3.00 25.00 4.00 209.00 28.7 12.80 2.00 GIPI,GIMIY,GIFI,TIPI SR M5-04451 T-20/5 • Left-hand heads on request • The shank assembly is the same for right- and left-hand heads • For user guide, see pages 475-492 (1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum For inserts, see pages: GEMI (384) • GEMI (full radius) (384) • GEPI (385) • GEPI (full radius) (386) • GEPI (W
