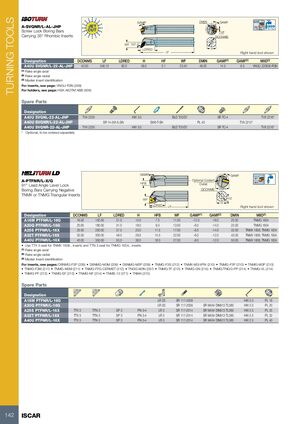

TURNING TOOLS GAMP DMIN GAMF 107.5º A-SVQNR/L-AL-JHP 35º MAX Bar Max Screw Lock Boring Bars HF Carrying 35° Rhombic Inserts DCONMS WF 107.5˚ LDRED H LF Right hand tool shown Designation DCONMS LF LDRED H HF WF DMIN GAMP(1) GAMF(2) MIID(3) A40U SVQNR/L-22-AL-JHP 40.00 348.10 60.0 36.0 0.1 23.40 49.00 14.5 6.5 VNGU 220630-R3N (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see page: VNGU-R3N (268) For holders, see page: HSK A63TM ABB (839) Spare Parts Designation A40U SVQNL-22-AL-JHP TVX 2230 HW 3.0 BLD T20/S7 SR TC-4 TVX 2216* A40U SVQNR/L-22-AL-JHP SR 14-591/L-SN SW6-T-SH PL 40 TVX 2212* A40U SVQNR-22-AL-JHP TVX 2230 HW 3.0 BLD T20/S7 SR TC-4 TVX 2216* * Optional, to be ordered separately GAMP GAMF 91º A-PTFNR/L-X/G Optional Coolant HFB Outlet 91° Lead Angle Lever Lock DCONMS DMIN Boring Bars Carrying Negative TNMX or TNMG Triangular Inserts WF H/2 H LDRED LF Right hand tool shown Designation DCONMS LF LDRED H HFB WF GAMP(1) GAMF(2) DMIN MIID(3) A16M PTFNR/L-16G 16.00 150.00 31.0 15.0 7.5 11.00 -12.0 -16.0 20.00 TNMG 1604 A20Q PTFNR/L-16G 20.00 180.00 31.0 18.0 9.0 13.00 -6.0 -14.0 25.00 TNMG 1604 A25S PTFNR/L-16X 25.00 250.00 37.5 23.0 11.5 17.00 -6.0 -14.0 32.00 TNMX 1606, TNMG 1604 A32T PTFNR/L-16X 32.00 300.00 48.0 29.0 14.5 22.00 -6.0 -12.0 40.00 TNMX 1606, TNMG 1604 A40U PTFNR/L-16X 40.00 350.00 50.0 36.0 18.0 27.00 -6.0 -12.0 50.00 TNMX 1606, TNMG 1604 • Use TTX 3 seat for TNMX 1606.. inserts and TTN 3 seat for TNMG 1604.. inserts (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: D6NMG-F3P (209) • D6NMG-M3M (209) • D6NMG-M3P (209) • TNMG-F3S (212) • TNMX-M3/4PW (210) • TNMG-F3P (210) • TNMG-M3P (210) • TNMG-F3M (211) • TNMG-M3M (211) • TNMG-FFG-CERMET (212) • TNGG-M3N (267) • TNMG-TF (213) • TNMG-GN (215) • TNMG/TNGG-PP (214) • TNMG-VL (214) • TNMG-PF (213) • TNMG-SF (213) • TNMG-NF (214) • TNMS-12 (271) • TNMA (215) Spare Parts Designation A16M PTFNR/L-16G LR 3S SR 117-2009 HW 2.0 PL 16 A20Q PTFNR/L-16G LR 3S SR 117-2009 SR M4X4 DIN913 TL360 HW 2.0 PL 20 A25S PTFNR/L-16X TTX 3 TTN 3 SP 3 PN 3-4 LR 3 SR 117-2014 SR M4X4 DIN913 TL360 HW 2.5 PL 25 A32T PTFNR/L-16X TTX 3 TTN 3 SP 3 PN 3-4 LR 3 SR 117-2014 SR M4X4 DIN913 TL360 HW 2.5 PL 32 A40U PTFNR/L-16X TTX 3 TTN 3 SP 3 PN 3-4 LR 3 SR 117-2014 SR M4X4 DIN913 TL360 HW 2.5 PL 40 142 ISCAR
