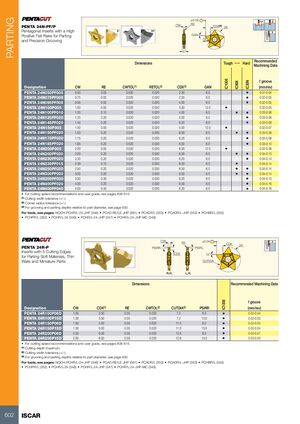

PARTING ±0.04 CW RE PENTA 24N-PF/P CDX(3) 24 Pentagonal Inserts with a High Positive Flat Rake for Parting GAN 7º and Precision Grooving 4 Recommended Dimensions Tough 1 Hard Machining Data f groove IC1008 IC30N IC908 Designation CW RE CWTOL(1) RETOL(2) CDX(3) GAN (mm/rev) PENTA 24N050PF005 0.50 0.05 0.020 0.020 2.50 6.0 • 0.01-0.04 PENTA 24N075PF005 0.75 0.05 0.020 0.020 2.50 6.0 • 0.02-0.05 PENTA 24N095PF005 0.95 0.05 0.020 0.020 4.00 6.0 • 0.02-0.05 PENTA 24N100P005 1.00 0.05 0.020 0.020 3.50 12.0 • 0.02-0.05 PENTA 24N100PF010 1.00 0.10 0.020 0.020 4.00 6.0 • • 0.03-0.06 PENTA 24N125PF020 1.25 0.20 0.020 0.020 5.00 6.0 • 0.03-0.06 PENTA 24N145PF020 1.45 0.20 0.020 0.020 6.20 6.0 • 0.03-0.06 PENTA 24N150P005 1.50 0.05 0.020 0.020 5.00 12.0 • 0.02-0.07 PENTA 24N150PF020 1.50 0.20 0.020 0.030 6.00 6.0 • • 0.03-0.09 PENTA 24N175PF020 1.75 0.20 0.020 0.030 6.20 6.0 • 0.02-0.08 PENTA 24N185PF020 1.85 0.20 0.020 0.030 6.00 6.0 • 0.03-0.10 PENTA 24N200P005 2.00 0.05 0.020 0.020 6.00 12.0 • 0.02-0.08 PENTA 24N200PF020 2.00 0.20 0.020 0.030 6.50 6.0 • • 0.04-0.10 PENTA 24N230PF020 2.30 0.20 0.020 0.030 6.20 6.0 • 0.04-0.14 PENTA 24N239PF015 2.39 0.15 0.020 0.030 6.50 6.0 • 0.04-0.14 PENTA 24N250PF020 2.50 0.20 0.020 0.030 6.50 6.0 • • 0.04-0.14 PENTA 24N300PF020 3.00 0.20 0.020 0.030 6.50 6.0 • • 0.04-0.14 PENTA 24N300PF030 3.00 0.30 0.020 0.030 6.20 6.0 • 0.04-0.15 PENTA 24N400PF020 4.00 0.20 0.020 0.030 6.50 6.0 • 0.04-0.16 PENTA 24N400PF040 4.00 0.40 0.020 0.030 6.20 6.0 • 0.04-0.16 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) For grooving and parting depths relative to part diameter, see page 600 For tools, see pages: NQCH-PCHR/L-24-JHP (348) • PCAD RE/LE-JHP (561) • PCADR/L (353) • PCADR/L-JHP (353) • PCHBR/L (355) • PCHPR/L (352) • PCHR/L-24 (346) • PCHR/L-24-JHP (347) • PCHR/L-24-JHP-MC (348) CW ±0.04 RE CDX 24 PENTA 24R-P PSIRR PSIRL Inserts with 5 Cutting Edges CDX 12° for Parting Soft Materials, Thin Walls and Miniature Parts CUTDIA R.H. L.H. Dimensions Recommended Machining Data f groove IC1008 Designation CW CDX(1) RE CWTOL(2) CUTDIA(3) PSIRR (mm/rev) PENTA 24R100P06D 1.00 3.50 0.05 0.020 7.2 6.0 • 0.02-0.04 PENTA 24R100P15D 1.00 3.50 0.05 0.020 7.2 15.0 • 0.02-0.03 PENTA 24R150P06D 1.50 5.00 0.05 0.020 11.0 6.0 • 0.02-0.05 PENTA 24R150P15D 1.50 5.00 0.05 0.020 11.0 15.0 • 0.02-0.04 PENTA 24R200P06D 2.00 6.00 0.05 0.020 12.6 6.0 • 0.02-0.07 PENTA 24R200P15D 2.00 6.00 0.05 0.020 12.6 15.0 • 0.02-0.05 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting depth maximum (2) Cutting width tolerance (+/-) (3) For grooving and parting depths relative to part diameter, see page 600 For tools, see pages: NQCH-PCHR/L-24-JHP (348) • PCAD RE/LE-JHP (561) • PCADR/L (353) • PCADR/L-JHP (353) • PCHBR/L (355) • PCHPR/L (352) • PCHR/L-24 (346) • PCHR/L-24-JHP (347) • PCHR/L-24-JHP-MC (348) 602 ISCAR
