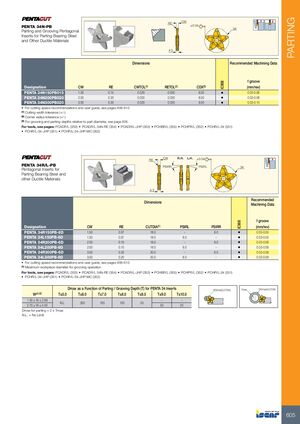

PARTING CW RE PENTA 34N-PB ±0.04 34 Parting and Grooving Pentagonal Inserts for Parting Bearing Steel and Other Ductile Materials 4.3 Dimensions Recommended Machining Data f groove IC908 Designation CW RE CWTOL(1) RETOL(2) CDX(3) (mm/rev) PENTA 34N150PB015 1.50 0.15 0.020 0.030 8.50 • 0.03-0.06 PENTA 34N200PB020 2.00 0.20 0.020 0.030 8.50 • 0.03-0.08 PENTA 34N300PB020 3.00 0.20 0.020 0.030 9.50 • 0.03-0.10 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) For grooving and parting depths relative to part diameter, see page 605 For tools, see pages: PCADR/L (353) • PCADR/L 34N-RE (354) • PCADR/L-JHP (353) • PCHBR/L (355) • PCHPR/L (352) • PCHR/L-34 (351) • PCHR/L-34-JHP (351) • PCHR/L-34-JHP-MC (352) CW R.H. L.H. ±0.04 RE PENTA 34R/L-PB PSIRR PSIRL 34 Pentagonal Inserts for Parting Bearing Steel and other Ductile Materials 4.3 Recommended Dimensions Machining Data f groove IC908 Designation CW RE CUTDIA(1) PSIRL PSIRR (mm/rev) PENTA 34R150PB-6D 1.50 0.07 18.0 - 6.0 • 0.03-0.05 PENTA 34L150PB-6D 1.50 0.07 18.0 6.0 - • 0.03-0.05 PENTA 34R200PB-6D 2.00 0.10 18.0 - 6.0 • 0.03-0.06 PENTA 34L200PB-6D 2.00 0.10 18.0 6.0 - • 0.03-0.06 PENTA 34R300PB-6D 3.00 0.20 20.0 - 6.0 • 0.03-0.08 PENTA 34L300PB-6D 3.00 0.20 20.0 6.0 - • 0.03-0.08 • For cutting speed recommendations and user guide, see pages 606-615 (1) Maximum workpiece diameter for grooving operation For tools, see pages: PCADR/L (353) • PCADR/L 34N-RE (354) • PCADR/L-JHP (353) • PCHBR/L (355) • PCHPR/L (352) • PCHR/L-34 (351) • PCHR/L-34-JHP (351) • PCHR/L-34-JHP-MC (352) Dmax as a Function of Parting / Grooving Depth (T) for PENTA 34 Inserts ØDmax(CUTDIA) Tmax ØDmax(CUTDIA) W±0.02 T≤5.0 T≤6.0 T≤7.0 T≤8.0 T≤8.5 T≤9.0 T≤10.0 1�50 ≤ W ≤ 2�69 - - N�L� 350 165 100 55 2�70 ≤ W ≤ 4�00 55 20 Dmax for parting = 2 x Tmax N�L� = No Limit 605
