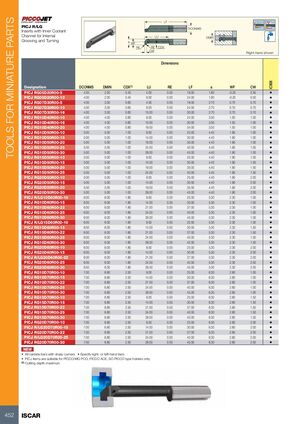

TOOLS FOR MINIATURE PARTS LF PICJ R/LG DCONMS Inserts with Inner Coolant Channel for Internal LU DMIN Grooving and Turning a WF RE RE CDX CW Right-hand shown Dimensions IC908 Designation DCONMS DMIN CDX(1) LU RE LF a WF CW PICJ RG05D20R00-5 4.00 2.00 0.40 4.00 0.00 19.00 1.80 -0.20 0.50 • PICJ RG05D20R00-10 4.00 2.00 0.40 9.00 0.00 24.00 1.80 -0.20 0.50 • PICJ RG07D30R00-5 4.00 3.00 0.60 4.00 0.00 19.00 2.70 0.70 0.70 • PICJ RG07D30R00-10 4.00 3.00 0.60 9.00 0.00 24.00 2.70 0.70 0.70 • PICJ RG07D30R00-16 4.00 3.00 0.60 15.00 0.00 30.00 2.70 0.70 0.70 • PICJ RG10D40R00-10 4.00 4.00 0.80 9.00 0.00 24.00 3.50 1.50 1.00 • PICJ RG10D40R00-16 4.00 4.00 0.80 15.00 0.00 30.00 3.50 1.50 1.00 • PICJ RG10D40R00-20 4.00 4.00 0.80 19.00 0.00 34.00 3.50 1.50 1.00 • PICJ RG10D50R00-10 5.00 5.00 1.00 9.00 0.00 25.00 4.40 1.90 1.00 • PICJ RG10D50R00-15 5.00 5.00 1.00 14.00 0.00 30.00 4.40 1.90 1.00 • PICJ RG10D50R00-20 5.00 5.00 1.00 19.00 0.00 35.00 4.40 1.90 1.00 • PICJ RG10D50R00-25 5.00 5.00 1.00 24.00 0.00 40.00 4.40 1.90 1.00 • PICJ RG10D50R00-30 5.00 5.00 1.00 29.00 0.00 45.00 4.40 1.90 1.00 • PICJ RG15D50R00-10 5.00 5.00 1.00 9.00 0.00 25.00 4.40 1.90 1.50 • PICJ RG15D50R00-15 5.00 5.00 1.00 14.00 0.00 30.00 4.40 1.90 1.50 • PICJ RG15D50R00-20 5.00 5.00 1.00 19.00 0.00 35.00 4.40 1.90 1.50 • PICJ RG15D50R00-25 5.00 5.00 1.00 24.00 0.00 40.00 4.40 1.90 1.50 • PICJ RG20D50R00-10 5.00 5.00 1.00 9.00 0.00 25.00 4.40 1.90 2.00 • PICJ RG20D50R00-15 5.00 5.00 1.00 14.00 0.00 30.00 4.40 1.90 2.00 • PICJ RG20D50R00-20 5.00 5.00 1.00 19.00 0.00 35.00 4.40 1.90 2.00 • PICJ RG20D50R00-30 5.00 5.00 1.00 29.00 0.00 45.00 4.40 1.90 2.00 • PICJ R/LG10D60R00-10 6.00 6.00 1.80 9.00 0.00 25.00 5.30 2.30 1.00 • PICJ RG10D60R00-15 6.00 6.00 1.80 14.00 0.00 30.00 5.30 2.30 1.00 • PICJ RG10D60R00-22 6.00 6.00 1.80 21.00 0.00 37.00 5.30 2.30 1.00 • PICJ RG10D60R00-25 6.00 6.00 1.80 24.00 0.00 40.00 5.30 2.30 1.00 • PICJ RG10D60R00-30 6.00 6.00 1.80 29.00 0.00 45.00 5.30 2.30 1.00 • PICJ R/LG15D60R00-10 6.00 6.00 1.80 9.00 0.00 25.00 5.30 2.30 1.50 • PICJ RG15D60R00-15 6.00 6.00 1.80 14.00 0.00 30.00 5.30 2.30 1.50 • PICJ RG15D60R00-22 6.00 6.00 1.80 21.00 0.00 37.00 5.30 2.30 1.50 • PICJ RG15D60R00-25 6.00 6.00 1.80 24.00 0.00 40.00 5.30 2.30 1.50 • PICJ RG15D60R00-30 6.00 6.00 1.80 29.00 0.00 45.00 5.30 2.30 1.50 • PICJ RG20D60R00-10 6.00 6.00 1.80 9.00 0.00 25.00 5.30 2.30 2.00 • PICJ RG20D60R00-15 6.00 6.00 1.80 14.00 0.00 30.00 5.30 2.30 2.00 • PICJ R/LG20D60R00-22 6.00 6.00 1.80 21.00 0.00 37.00 5.30 2.30 2.00 • PICJ RG20D60R00-25 6.00 6.00 1.80 24.00 0.00 40.00 5.30 2.30 2.00 • PICJ RG20D60R00-30 6.00 6.00 1.80 29.00 0.00 45.00 5.30 2.30 2.00 • PICJ RG10D70R00-10 7.00 6.80 2.50 9.00 0.00 25.00 6.30 2.80 1.00 • PICJ RG10D70R00-15 7.00 6.80 2.50 14.00 0.00 30.00 6.30 2.80 1.00 • PICJ RG10D70R00-22 7.00 6.80 2.50 21.00 0.00 37.00 6.30 2.80 1.00 • PICJ RG10D70R00-25 7.00 6.80 2.50 24.00 0.00 40.00 6.30 2.80 1.00 • PICJ RG10D70R00-30 7.00 6.80 2.50 29.00 0.00 45.00 6.30 2.80 1.00 • PICJ RG15D70R00-10 7.00 6.80 2.50 9.00 0.00 25.00 6.30 2.80 1.50 • PICJ RG15D70R00-15 7.00 6.80 2.50 14.00 0.00 30.00 6.30 2.80 1.50 • PICJ RG15D70R00-22 7.00 6.80 2.50 21.00 0.00 37.00 6.30 2.80 1.50 • PICJ RG15D70R00-25 7.00 6.80 2.50 24.00 0.00 40.00 6.30 2.80 1.50 • PICJ RG15D70R00-30 7.00 6.80 2.50 29.00 0.00 45.00 6.30 2.80 1.50 • PICJ RG20D70R00-10 7.00 6.80 2.50 9.00 0.00 25.00 6.30 2.80 2.00 • PICJ R/LG20D70R00-15 7.00 6.80 2.50 14.00 0.00 30.00 6.30 2.80 2.00 • PICJ RG20D70R00-22 7.00 6.80 2.50 21.00 0.00 37.00 6.30 2.80 2.00 • PICJ R/LG20D70R00-25 7.00 6.80 2.50 24.00 0.00 40.00 6.30 2.80 2.00 • PICJ RG20D70R00-30 7.00 6.80 2.50 29.00 0.00 45.00 6.30 2.80 2.00 • NEW • All carbide bars with sharp corners • Specify right- or left-hand bars • PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only (1) Cutting depth maximum 452 ISCAR
