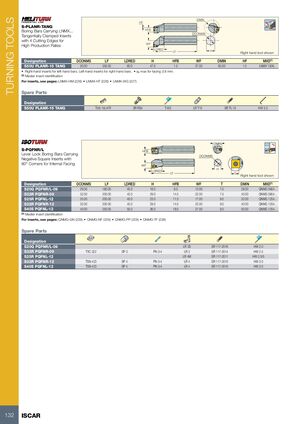

TURNING TOOLS DMIN HF S-PLANR-TANG 93º HFB Boring Bars Carrying LNMX... DCONMS Tangentially Clamped Inserts with 4 Cutting Edges for WF High Production Rates LDRED H LF Right hand tool shown Designation DCONMS LF LDRED H HFB WF DMIN HF MIID(1) S50U PLANR-15 TANG 50.00 350.00 60.0 47.0 1.5 37.00 85.00 1.5 LNMX 1506... • Right-hand inserts for left-hand bars. Left-hand inserts for right-hand bars. • ap max for facing 3.8 mm. (1) Master insert identification For inserts, see pages: LNMX-HM (226) • LNMX-HT (226) • LNMX-WG (227) Spare Parts Designation S50U PLANR-15 TANG TLN 15L-HTI SR RS4 T-6/5 LR T15 SR TL-15 HW 3.5 DMIN S-PQFNR/L HFB 95º Lever Lock Boring Bars Carrying DCONMS Negative Square Inserts with 80° Corners for Internal Facing WF H LDRED LF T Right hand tool shown Designation DCONMS LF LDRED H HFB WF T DMIN MIID(1) S20Q PQFNR/L-09 20.00 180.00 40.0 18.0 9.0 13.00 7.5 28.00 QNMG 0904... S32R PQFNR-09 32.00 200.00 45.0 29.0 14.5 22.00 7.5 40.00 QNMG 0904... S25R PQFNL-12 25.00 200.00 40.0 23.0 11.5 17.00 9.0 32.00 QNMG 1204... S32R PQFNR-12 32.00 200.00 45.0 29.0 14.5 22.00 9.0 40.00 QNMG 1204... S40S PQFNL-12 40.00 250.00 50.0 36.0 18.0 27.00 9.0 50.00 QNMG 1204... (1) Master insert identification For inserts, see pages: QNMG-GN (229) • QNMG-NF (228) • QNMG-PP (228) • QNMG-TF (228) Spare Parts Designation S20Q PQFNR/L-09 LR 3S SR 117-2016 HW 2.0 S32R PQFNR-09 TXC 322 SP 3 PN 3-4 LR 3 SR 117-2014 HW 2.5 S25R PQFNL-12 LR 4M SR 117-2011 HW 2.5/5 S32R PQFNR-12 TSN 423 SP 4 PN 3-4 LR 4 SR 117-2010 HW 3.0 S40S PQFNL-12 TSN 423 SP 4 PN 3-4 LR 4 SR 117-2010 HW 3.0 132 ISCAR
