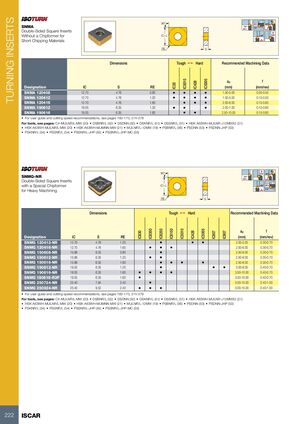

TURNING INSERTS 45º 90° 45º SNMA 75º 75º Double-Sided Square Inserts Without a Chipformer for IC=L 45° 75º Short Chipping Materials RE S Dimensions Tough 1 Hard Recommended Machining Data ap f IC5010 IC5005 IC428 IC20 Designation IC S RE (mm) (mm/rev) SNMA 120408 12.70 4.76 0.80 • • • • 1.50-5.00 0.05-0.50 SNMA 120412 12.70 4.76 1.20 • • • • 1.50-5.00 0.10-0.50 SNMA 120416 12.70 4.76 1.60 • • • 2.00-6.00 0.10-0.60 SNMA 190612 19.05 6.35 1.20 • • • 2.00-7.00 0.10-0.60 SNMA 190616 19.05 6.35 1.60 • • 2.50-10.00 0.10-0.60 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: C#-MULNR/L-MW (20) • DSBNR/L (52) • DSDNN (50) • DSKNR/L (51) • DSSNR/L (51) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • PSBNR/L (56) • PSDNN (53) • PSDNN-JHP (53) • PSKNR/L (54) • PSSNR/L (54) • PSSNR/L-JHP (55) • PSSNR/L-JHP-MC (55) 45º 90° 75º 45º SNMG-NR 75º Double-Sided Square Inserts with a Special Chipformer IC=L 45° 75º for Heavy Machining RE S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8350 IC8250 IC8150 IC5010 IC5005 IC830 IC428 IC807 IC907 Designation IC S RE (mm) (mm/rev) SNMG 120412-NR 12.70 4.76 1.20 • • • 2.00-5.00 0.30-0.70 SNMG 120416-NR 12.70 4.76 1.60 • • • 2.50-6.00 0.30-0.70 SNMG 150608-NR 15.88 6.35 0.80 • 2.50-8.00 0.30-0.70 SNMG 150612-NR 15.88 6.35 1.20 • • 2.50-8.00 0.30-0.70 SNMG 150616-NR 15.88 6.35 1.60 • • • • 2.50-8.00 0.30-0.70 SNMG 190612-NR 19.05 6.35 1.20 • • • 3.00-8.00 0.40-0.70 SNMG 190616-NR 19.05 6.35 1.60 • • • • 3.50-10.00 0.40-0.70 SNMG 190616-R3P 19.05 6.35 1.60 • 3.50-10.00 0.40-0.70 SNMG 250724-NR 25.40 7.94 2.40 • 5.00-15.00 0.40-1.00 SNMG 250924-NR 25.40 9.52 2.40 • • • 5.00-15.00 0.40-1.00 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: C#-MULNR/L-MW (20) • DSBNR/L (52) • DSDNN (50) • DSKNR/L (51) • DSSNR/L (51) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • PSBNR/L (56) • PSDNN (53) • PSDNN-JHP (53) • PSKNR/L (54) • PSSNR/L (54) • PSSNR/L-JHP (55) • PSSNR/L-JHP-MC (55) 222 ISCAR
