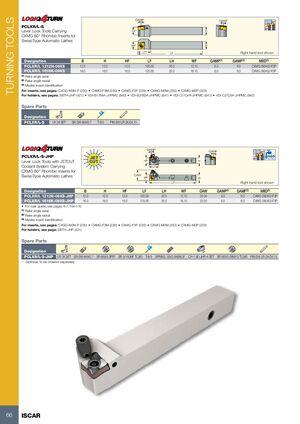

TURNING TOOLS GAMP GAMF 95º PCLXR/L-S 95º Lever Lock Tools Carrying HF H CXMG 80° Rhombic Inserts for Swiss-Type Automatic Lathes WF B LH LF Right hand tool shown Designation B H HF LF LH WF GAMP(1) GAMF(2) MIID(3) PCLXR/L 1212H-09XS 12.0 12.0 12.0 100.00 20.0 12.15 6.0 6.0 CXMG 090402-F3P PCLXR/L 1616K-09XS 16.0 16.0 16.0 125.00 20.0 16.15 6.0 6.0 CXMG 090402-F3P (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: CXGG-M3N-P (230) • CXMG-F3M (230) • CXMG-F3P (229) • CXMG-M3M (230) • CXMG-M3P (229) For holders, see pages: SBTH-JHP (421) • VDI-B1/B4A-JHPMC (840) • VDI-B2/B3A-JHPMC (841) • VDI-C1/C4A-JHPMC (841) • VDI-C2/C3A-JHPMC (842) Spare Parts Designation PCLXR/L-S LR 3X SET SR-SW-M4X0.7 T-8/5 PIN-SW LR-3X-D4.15 GAMP GAMF 95º PCLXR/L-S-JHP 95º Bar Max Lever Lock Tools with JETCUT HF H Coolant System Carrying LH CXMG 80° Rhombic Inserts for Swiss-Type Automatic Lathes OAW WF B LF Right hand tool shown Designation B H HF LF LH WF OAW GAMP(1) GAMF(2) MIID(3) PCLXR/L 1212H-09XS-JHP 12.0 12.0 12.0 100.00 20.0 12.15 23.00 6.0 6.0 CXMG 090402-F3P PCLXR/L 1616K-09XS-JHP 16.0 16.0 16.0 125.00 20.0 16.15 23.00 6.0 6.0 CXMG 090402-F3P • For user guide, see pages 6-7,104-110 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: CXGG-M3N-P (230) • CXMG-F3M (230) • CXMG-F3P (229) • CXMG-M3M (230) • CXMG-M3P (229) For holders, see page: SBTH-JHP (421) Spare Parts Designation PCLXR/L-S-JHP LR 3X SET SR-SW-M4X0.7 SR M5X5 SPR* SR 5/16UNF TL360 T-8/5 SPRING-.55X2.9X6X6.8* CH-1.9D-JHP-A SET SR M3X3 DIN913 TL360 PIN-SW LR-3X-D4.15 * Optional, to be ordered separately 66 ISCAR
