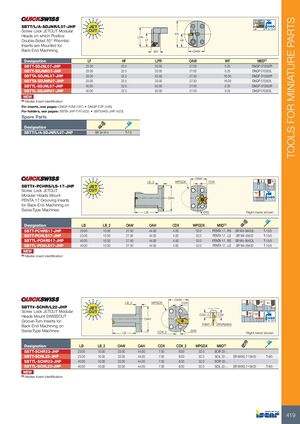

TOOLS FOR MINIATURE PARTS 27° MAX SBTT/L/A-SDJNR/L07-JHP 93° Bar Max Screw Lock JETCUT Modular 45 Heads on which Positive LPR Double-Sided 55° Rhombic LF HF Inserts are Mounted for Back-End Machining WF OAW Designation LF HF LPR OAW WF MIID(1) SBTT-SDJNL07-JHP 23.00 22.5 33.00 27.00 0.25 DNGP 070302R SBTT-SDJNR07-JHP 23.00 22.5 33.00 27.00 0.25 DNGP 070302L SBTTA-SDJNL07-JHP 23.00 22.5 33.00 27.30 16.00 DNGP 070302R SBTTA-SDJNR07-JHP 23.00 22.5 33.00 27.30 16.00 DNGP 070302L SBTTL-SDJNL07-JHP 40.00 22.5 50.00 27.00 0.25 DNGP 070302R SBTTL-SDJNR07-JHP 40.00 22.5 50.00 27.00 0.25 DNGP 070302L NEW (1) Master insert identification For inserts, see pages: DNGP-F2M (197) • DNGP-F2P (195) For holders, see pages: SBTB-JHP-T/R (422) • SBTS##S-JHP (423) Spare Parts Designation SBTT/L/A-SDJNR/L07-JHP SR 34-514 T-7/5 OAW LB_2 WPGDX CDX SBTT#-PCHRS/LS-17-JHP Screw Lock JETCUT Modular Heads Mount OAH PENTA 17 Grooving Inserts Bar Max for Back-End Machining on Swiss-Type Machines Ø45 LB Right-hand shown Designation LB LB_2 OAW OAH CDX WPGDX MIID(1) SBTT-PCHRS17-JHP 23.00 10.00 27.50 44.00 4.00 32.0 PENTA 17...RS SR M4-39432L T-15/5 SBTT-PCHLS17-JHP 23.00 10.00 27.50 44.00 4.00 32.0 PENTA 17...LS SR M4-39432 T-15/5 SBTTL-PCHRS17-JHP 40.00 10.00 27.50 44.00 4.00 32.0 PENTA 17...RS SR M4-39432L T-15/5 SBTTL-PCHLS17-JHP 40.00 10.00 27.50 44.00 4.00 32.0 PENTA 17...LS SR M4-39432 T-15/5 NEW (1) Master insert identification OAW LB_2 WPGDX CDX SBTT#-SCHR/L22-JHP Screw Lock JETCUT Modular Heads Mount SWISSCUT CDX_2 CDX OAH Groove-Turn Inserts for Bar Max Insert Workpiece Back-End Machining on Swiss-Type Machines CDX_2 Ø45 LB Right-hand shown Designation LB LB_2 OAW OAH CDX CDX_2 WPGDX MIID(1) SBTT-SCHR22-JHP 23.00 10.00 33.00 44.00 7.00 8.00 32.0 SCIR 22-... SBTT-SCHL22-JHP 23.00 10.00 33.00 44.00 7.00 8.00 32.0 SCIL 22-... SR M4X0.7-19425 T-8/5 SBTTL-SCHR22-JHP 40.00 10.00 33.00 44.00 7.00 8.00 32.0 SCIR 22-... SBTTL-SCHL22-JHP 40.00 10.00 33.00 44.00 7.00 8.00 32.0 SCIL 22-... SR M4X0.7-19425 T-8/5 NEW (1) Master insert identification 419
