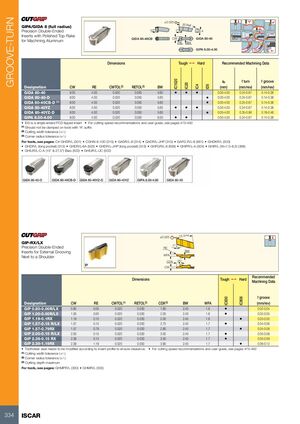

GROOVE-TURN ±0.025 30 Ref. GIPA/GIDA 8 (full radius) Precision Double-Ended 10° 7° 6.4 Inserts with Polished Top Rake GIDA 80-40CB CW GIDA 80-40 for Machining Aluminum RE BW GIPA 8.00-4.00 Dimensions Tough 1 Hard Recommended Machining Data ap f turn f groove IC1520 IC20 IC4 ID5 Designation CW RE CWTOL(2) RETOL(3) BW (mm) (mm/rev) (mm/rev) GIDA 80-40 8.00 4.00 0.020 0.050 5.60 • • • 0.00-4.00 0.24-0.67 0.14-0.38 GIDA 80-40-D 8.00 4.00 0.020 0.050 5.60 • 0.00-4.00 0.24-0.67 0.14-0.38 GIDA 80-40CB-D (1) 8.00 4.00 0.020 0.050 5.60 • 0.00-4.00 0.24-0.67 0.14-0.38 GIDA 80-40YZ 8.00 4.00 0.020 0.050 5.60 • • • 0.00-4.00 0.24-0.67 0.14-0.38 GIDA 80-40YZ-D 8.00 4.00 0.020 0.050 5.60 • 0.00-4.00 0.35-0.96 0.18-0.48 GIPA 8.00-4.00 8.00 4.00 0.020 0.050 6.00 • • 0.00-4.00 0.24-0.67 0.14-0.38 • ID5 is a single-ended PCD tipped insert • For cutting speed recommendations and user guide, see pages 475-492 (1) Should not be clamped on tools with “A” suffix (2) Cutting width tolerance (+/-) (3) Corner radius tolerance (+/-) For tools, see pages: C#-GHDR/L (301) • CGHN-8-10D (315) • GADR/L-8 (314) • GADR/L-JHP (315) • GAFG-R/L-8 (661) • GHDKR/L (503) • GHDR/L (long pocket) (313) • GHDR/L-8A (503) • GHDR/L-JHP (long pocket) (313) • GHFGR/L-8 (659) • GHIFR/L-A (503) • GHIR/L (W=7.0-8.3) (398) • GHIUR/L-C-A (15° & 27.5°) Bars (502) • GHIUR/L-UC (502) ±0.025 15.3 Ref GIP-RX/LX 7° Precision Double-Ended RE Inserts for External Grooving BW WFA Next to a Shoulder CDX 25° CW Recommended Dimensions Tough 1 Hard Machining Data f groove IC830 IC808 Designation CW RE CWTOL(1) RETOL(2) CDX(3) BW WFA (mm/rev) GIP 0.80-0.00R/LX 0.80 0.00 0.020 0.030 1.60 2.40 1.6 • 0.02-0.04 GIP 1.00-0.00R/LX 1.00 0.00 0.020 0.030 2.00 2.40 1.6 • 0.02-0.05 GIP 1.19-0.1RX 1.19 0.10 0.020 0.030 2.00 2.40 1.6 • 0.03-0.05 GIP 1.57-0.15 R/LX 1.57 0.15 0.020 0.030 2.70 2.40 1.7 • 0.04-0.06 GIP 1.57-0.79RX 1.57 0.79 0.020 0.030 2.80 2.40 1.7 • 0.04-0.08 GIP 2.00-0.15 R/LX 2.00 0.15 0.020 0.030 3.00 2.40 1.7 • 0.05-0.08 GIP 2.39-0.15 RX 2.39 0.15 0.020 0.030 3.50 2.40 1.7 • 0.05-0.09 GIP 2.39-1.19RX 2.39 1.19 0.020 0.050 3.90 2.40 1.7 • 0.06-0.12 • Toolholder seat needs to be modified according to insert profile to ensure clearance. • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum For tools, see pages: GHMPR/L (300) • GHMR/L (300) 334 ISCAR
