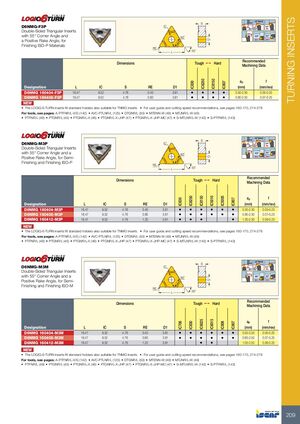

TURNING INSERTS 55° 22°MAX S MAX D6NMG-F3P IC 60º 93 º 91º Double-Sided Triangular Inserts 91º with 55° Corner Angle and 60˚ 95º 91º a Positive Rake Angle, for D1 Finishing ISO-P Materials RE L 55˚ Recommended Dimensions Tough 1 Hard Machining Data ap f IC8250 IC8150 IC830 IC807 Designation L IC S RE D1 (mm) (mm/rev) D6NMG 160404-F3P 16.47 9.52 4.76 0.40 3.81 • • • • 0.50-2.50 0.05-0.25 D6NMG 160408-F3P 16.47 9.52 4.76 0.80 3.81 • • • • 0.80-2.50 0.07-0.25 NEW • The LOGIQ-6-TURN inserts fit standard holders also suitable for TNMG inserts • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PTFNR/L-X/G (142) • AVC-PTLNR/L (125) • DTGNR/L (50) • MTENN-W (49) • MTJNR/L-W (49) • PTFNR/L (48) • PTGNR/L (45) • PTGNR/L-X (46) • PTGNR/L-X-JHP (47) • PTGNR/L-X-JHP-MC (47) • S-MTLNR/L-W (143) • S-PTFNR/L (143) 55° 22°MAX S MAX D6NMG-M3P IC 60º 93 º 91º Double-Sided Triangular Inserts 91º with 55° Corner Angle and a 60˚ 95º 91º Positive Rake Angle, for Semi- D1 Finishing and Finishing ISO-P RE L 55˚ Recommended Dimensions Tough 1 Hard Machining Data ap f IC8250 IC8150 IC5010 IC5005 IC830 IC807 Designation L IC S RE D1 (mm) (mm/rev) D6NMG 160404-M3P 16.47 9.52 4.76 0.40 3.81 • • • • • • 0.50-2.50 0.05-0.25 D6NMG 160408-M3P 16.47 9.52 4.76 0.80 3.81 • • • • • • 0.80-2.50 0.07-0.25 D6NMG 160412-M3P 16.47 9.52 4.76 1.20 3.81 • • • • 1.00-2.50 0.08-0.25 NEW • The LOGIQ-6-TURN inserts fit standard holders also suitable for TNMG inserts • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PTFNR/L-X/G (142) • AVC-PTLNR/L (125) • DTGNR/L (50) • MTENN-W (49) • MTJNR/L-W (49) • PTFNR/L (48) • PTGNR/L (45) • PTGNR/L-X (46) • PTGNR/L-X-JHP (47) • PTGNR/L-X-JHP-MC (47) • S-MTLNR/L-W (143) • S-PTFNR/L (143) 55° 22°MAX S MAX D6NMG-M3M IC 60º 93 º 91º Double-Sided Triangular Inserts 91º with 55° Corner Angle and a 60˚ 95º 91º Positive Rake Angle, for Semi- D1 Finishing and Finishing ISO-M RE L 55˚ Recommended Dimensions Tough 1 Hard Machining Data ap f IC6025 IC6015 IC706 IC830 IC806 IC807 Designation L IC S RE D1 (mm) (mm/rev) D6NMG 160404-M3M 16.47 9.52 4.76 0.40 3.81 • • • • • • 0.50-2.50 0.05-0.25 D6NMG 160408-M3M 16.47 9.52 4.76 0.80 3.81 • • • • • • 0.80-2.50 0.07-0.25 D6NMG 160412-M3M 16.47 9.52 4.76 1.20 3.81 • • 1.00-2.50 0.08-0.25 NEW • The LOGIQ-6-TURN inserts fit standard holders also suitable for TNMG inserts • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PTFNR/L-X/G (142) • AVC-PTLNR/L (125) • DTGNR/L (50) • MTENN-W (49) • MTJNR/L-W (49) • PTFNR/L (48) • PTGNR/L (45) • PTGNR/L-X (46) • PTGNR/L-X-JHP (47) • PTGNR/L-X-JHP-MC (47) • S-MTLNR/L-W (143) • S-PTFNR/L (143) 209
