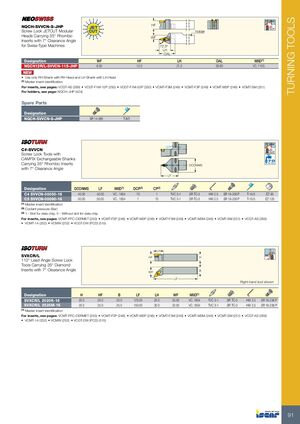

TURNING TOOLS 70°MAX NQCH-SVVCN-S-JHP HF 72.5º Screw Lock JETCUT Modular holder Heads Carrying 35° Rhombic WF Inserts with 7° Clearance Angle for Swiss-Type Machines 72.5º LH OAL Designation WF HF LH OAL MIID(1) NQCH12R/L-SVVCN-11S-JHP 6.00 12.0 21.0 28.80 VC..1103.. NEW • Use only RH Shank with RH Head and LH Shank with LH Head (1) Master insert identification For inserts, see pages: VCGT-AS (269) • VCGT-F1M-12P (250) • VCGT-F1M-20P (250) • VCMT-F3M (249) • VCMT-F3P (248) • VCMT-M3P (248) • VCMT-SM (251) For holders, see page: NQCH-JHP (424) Spare Parts Designation NQCH-SVVCN-S-JHP SR 14-560 T-8/5 70°MAX C#-SVVCN 72.5º Screw Lock Tools with CAMFIX Exchangeable Shanks 70 Carrying 35° Rhombic Inserts DCONMS Bar Max with 7° Clearance Angle LF Designation DCONMS LF MIID(1) DCP(3) CP(2) C4 SVVCN-00050-16 40.00 40.00 VC.. 1604 70 1 TVC 3-1 SR TC-3 HW 2.5 SR 16-236 P T-15/5 EZ 83 C5 SVVCN-00060-16 50.00 50.00 VC.. 1604 1 70 TVC 3-1 SR TC-3 HW 2.5 SR 16-236 P T-15/5 EZ 125 (1) Master insert identification (2) Coolant pressure (Bar) (3) 1 - Slot for data chip, 0 - Without slot for data chip For inserts, see pages: VCMT-FPC-CERMET (250) • VCMT-F3P (248) • VCMT-M3P (248) • VCMT-F3M (249) • VCMT-M3M (249) • VCMT-SM (251) • VCGT-AS (269) • VCMT-14 (252) • VCMW (252) • VCGT-DW (PCD) (515) LH 31º MAX SVXCR/L HF H 112° 112° Lead Angle Screw Lock Tools Carrying 35° Diamond Inserts with 7° Clearance Angle WF B LF Right hand tool shown Designation H HF B LF LH WF MIID(1) SVXCR/L 2020K-16 20.0 20.0 20.0 125.00 25.0 25.00 VC..1604 TVC 3-1 SR TC-3 HW 2.5 SR 16-236 P SVXCR/L 2525M-16 25.0 25.0 25.0 150.00 30.0 32.00 VC..1604 TVC 3-1 SR TC-3 HW 2.5 SR 16-236 P (1) Master insert identification For inserts, see pages: VCMT-FPC-CERMET (250) • VCMT-F3P (248) • VCMT-M3P (248) • VCMT-F3M (249) • VCMT-M3M (249) • VCMT-SM (251) • VCGT-AS (269) • VCMT-14 (252) • VCMW (252) • VCGT-DW (PCD) (515) 91
