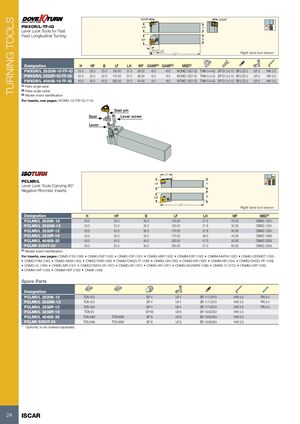

TURNING TOOLS GAMP GAMF PWXOR/L-TF-IQ HF H 18° Lever Lock Tools for Fast Feed Longitudinal Turning WF B 18.5° LH LF Right hand tool shown Designation H HF B LF LH WF GAMP(1) GAMF(2) MIID(3) PWXOR/L 2525M-10-TF-IQ 25.0 25.0 25.0 150.00 31.0 29.00 -6.0 -6.0 WOMG 1007-IQ TWN 5-4-IQ SP D1.5-L10 SR LCS 5 LR 5 HW 3.0 PWXOR/L 3232P-10-TF-IQ 32.0 32.0 32.0 170.00 31.0 36.00 -6.0 -6.0 WOMG 1007-IQ TWN 5-4-IQ SP D1.5-L10 SR LCS 5 LR 5 HW 3.0 PWXOR/L 4040S-10-TF-IQ 40.0 40.0 40.0 250.00 31.0 44.00 -6.0 -6.0 WOMG 1007-IQ TWN 5-4-IQ SP D1.5-L10 SR LCS 5 LR 5 HW 3.0 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: WOMG-10-T3P-IQ (174) Seat pin Seat Lever screw Lever LH 95º PCLNR/L H HF 95º Lever Lock Tools Carrying 80° Negative Rhombic Inserts WF B LF Right hand tool shown Designation H HF B LF LH WF MIID(1) PCLNR/L 2020K-12 20.0 20.0 20.0 125.00 27.5 25.00 CNMG 1204.. PCLNR/L 2525M-12 25.0 25.0 25.0 150.00 27.8 32.00 CNMG 1204.. PCLNR/L 3232P-12 32.0 32.0 32.0 170.00 27.6 40.00 CNMG 1204.. PCLNR/L 3232P-19 32.0 32.0 32.0 170.00 38.0 40.00 CNMG 1906.. PCLNR/L 4040S-25 40.0 40.0 40.0 250.00 47.0 50.00 CNMG 2509.. PCLNR 5050T-25 50.0 50.0 50.0 300.00 47.0 60.00 CNMG 2509.. (1) Master insert identification For inserts, see pages: CNMG-F3S (186) • CNMG-R3P (182) • CNMG-F3P (181) • CNMG-M3P (182) • CNMM-R3P (192) • CNMM-M4PW (192) • CNMG-CERMET (183) • CNMG-F3M (185) • CNMG-M3M (185) • CNMG-R3M (186) • CNMG/CNGG-TF (189) • CNMG-GN (190) • CNMG-NR (190) • CNMM-NR (194) • CNMG/CNGG-PP (189) • CNMG-VL (186) • CNMG-MR (191) • CNMG/CNGG-SF (187) • CNMG-NF (187) • CNMG-WF (187) • CNMG-WG/NRW (188) • CNMS-12 (272) • CNMM-H3P (193) • CNMM-H4P (193) • CNMM-H5P (193) • CNMA (188) Spare Parts Designation PCLNR/L 2020K-12 TCN 423 SP 4 LR 4 SR 117-2010 HW 3.0 PN 3-4 PCLNR/L 2525M-12 TCN 423 SP 4 LR 4 SR 117-2010 HW 3.0 PN 3-4 PCLNR/L 3232P-12 TCN 423 SP 4 LR 4 SR 117-2010 HW 3.0 PN 3-4 PCLNR/L 3232P-19 TCN 63 SP 66 LR 6 SR 10402352 HW 4.0 PCLNR/L 4040S-25 TCN 84N TCN 85N* SP 8 LR 8 SR 10402264 HW 5.0 PCLNR 5050T-25 TCN 84N TCN 85N* SP 8 LR 8 SR 10402264 HW 5.0 * Optional, to be ordered separately 24 ISCAR
