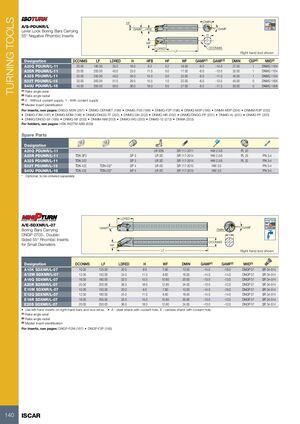

TURNING TOOLS HF DMIN 93º-95º A/S-PDUNR/L GAMF 30º GAMP HFB MAX Lever Lock Boring Bars Carrying 55° Negative Rhombic Inserts H WF LDRED DCONMS LF Right hand tool shown Designation DCONMS LF LDRED H HFB HF WF GAMP(1) GAMF(2) DMIN CSP(3) MIID(4) A20Q PDUNR/L-11 20.00 180.00 35.0 18.0 9.2 0.2 16.00 -6.0 -14.0 27.00 1 DNMG 1104 A25R PDUNR/L-11 25.00 200.00 40.0 23.0 11.5 0.0 17.00 -6.0 -13.0 32.00 1 DNMG 1104 A32S PDUNR/L-11 32.00 250.00 45.0 29.0 14.5 0.0 22.00 -6.0 -11.0 40.00 1 DNMG 1104 S32T PDUNR/L-15 32.00 300.00 51.0 29.0 15.5 1.0 22.00 -6.0 -13.0 40.00 0 DNMG 1506 S40U PDUNR/L-15 40.00 350.00 50.0 36.0 18.0 0.0 27.00 -6.0 -11.5 50.00 0 DNMG 1506 (1) Rake angle axial (2) Rake angle radial (3) 0 - Without coolant supply, 1 - With coolant supply (4) Master insert identification For inserts, see pages: DNGG-M3N (267) • DNMG-CERMET (199) • DNMG-F3S (198) • DNMG-F3P (196) • DNMG-M3P (196) • DNMX-M3P (204) • DNMM-R3P (203) • DNMG-F3M (197) • DNMG-M3M (198) • DNMG/DNGG-TF (202) • DNMG-GN (202) • DNMG-NR (202) • DNMG/DNGG-PP (201) • DNMG-VL (201) • DNMG-PF (200) • DNMG/DNGG-SF (199) • DNMG-NF (200) • DNMM-NM (203) • DNMG-WG (200) • DNMS-12 (272) • DNMA (203) For holders, see pages: HSK A63TM ABB (839) Spare Parts Designation A20Q PDUNR/L-11 LR 3DS SR 117-2011 HW 2.5/5 PL 20 A25R PDUNR/L-11 TDN 3P2 SP 3 LR 3D SR 117-2014 HW 2.5/5 PL 25 PN 3-4 A32S PDUNR/L-11 TDN 322 SP 3 LR 3D SR 117-2014 HW 2.5/5 PL 32 PN 3-4 S32T PDUNR/L-15 TDN 422 TDN 432* SP 4 LR 4D SR 117-2010 HW 3.0 PN 3-4 S40U PDUNR/L-15 TDN 422 TDN 432* SP 4 LR 4D SR 117-2010 HW 3.0 PN 3-4 * Optional, to be ordered separately LDRED 100º A/E-SDXNR/L-07 GAMP GAMF 15.5º MAX Boring Bars Carrying DMIN DNGP 0703.. Double- H Sided 55° Rhombic Inserts DCONMS for Small Diameters WF LF Right hand tool shown Designation DCONMS LF LDRED H WF DMIN GAMP(1) GAMF(2) MIID(3) A10K SDXNR/L-07 10.00 125.00 20.0 9.0 7.60 13.00 -14.0 -16.0 DNGP 07 SR 34-514 A12M SDXNR/L-07 12.00 150.00 24.0 11.0 8.60 16.00 -14.0 -14.0 DNGP 07 SR 34-514 A16Q SDXNR/L-07 16.00 180.00 32.0 15.0 10.60 20.00 -13.0 -13.0 DNGP 07 SR 34-514 A20R SDXNR/L-07 20.00 200.00 36.0 18.0 12.60 24.00 -13.0 -12.0 DNGP 07 SR 34-514 E10M SDXNR/L-07 10.00 150.00 20.0 9.0 7.60 13.00 -14.0 -16.0 DNGP 07 SR 34-514 E12Q SDXNR/L-07 12.00 180.00 24.0 11.0 8.60 16.00 -14.0 -14.0 DNGP 07 SR 34-514 E16R SDXNR/L-07 16.00 200.00 32.0 15.0 10.60 20.00 -13.0 -13.0 DNGP 07 SR 34-514 E20S SDXNR/L-07 20.00 250.00 36.0 18.0 12.60 24.00 -13.0 -12.0 DNGP 07 SR 34-514 • Use left-hand inserts on right-hand bars and vice versa. • A - steel shank with coolant hole, E - carbide shank with coolant hole. (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: DNGP-F2M (197) • DNGP-F2P (195) 140 ISCAR
