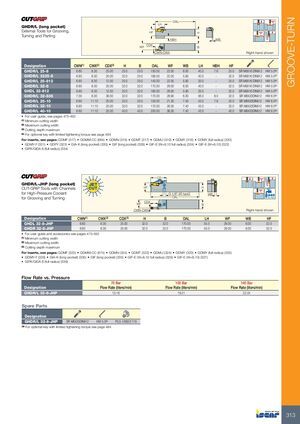

Токарные инструменты Iscar (часть 1) 2026 - страница 315

GROOVE-TURN OAL LH GHDR/L (long pocket) External Tools for Grooving, HF H Turning and Parting HBH WB CDX WF B CWN-CWX Right-hand shown Designation CWN(1) CWX(2) CDX(3) H B OAL WF WB LH HBH HF GHDR/L 25-8 6.60 8.30 25.00 25.0 25.0 150.00 22.00 6.00 40.0 7.6 25.0 SR M6X16 DIN912 HW 5.0(a) GHDR/L 3225-8 6.60 8.30 25.00 32.0 25.0 168.50 22.00 5.90 40.0 - 32.0 SR M6X16 DIN912 HW 5.0(a) GHDR/L 25-812 6.60 8.30 12.00 25.0 25.0 140.00 22.00 5.90 33.0 - 25.0 SR M6X16 DIN912 HW 5.0(a) GHDR/L 32-8 6.60 8.30 25.00 32.0 32.0 170.00 29.00 6.00 40.0 - 32.0 SR M6X16 DIN912 HW 5.0(a) GHDL 32-812 6.60 8.30 12.00 32.0 32.0 160.00 29.00 5.90 33.0 - 32.0 SR M6X16 DIN912 HW 5.0(a) GHDR/L 32-836 7.00 8.30 36.00 32.0 32.0 170.00 28.90 6.30 56.0 8.0 32.0 SR M8X20DIN912 HW 6.0(a) GHDR/L 25-10 8.60 11.10 25.00 25.0 25.0 150.00 21.30 7.40 43.0 7.6 25.0 SR M8X20DIN912 HW 6.0(a) GHDR/L 32-10 8.60 11.10 25.00 32.0 32.0 170.00 28.30 7.40 43.0 - 32.0 SR M8X20DIN912 HW 6.0(a) GHDR/L 40-10 8.60 11.10 25.00 40.0 40.0 200.00 36.30 7.40 43.0 - 40.0 SR M8X20DIN912 HW 6.0(a) • For user guide, see pages 475-492 (1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum (a) For optional key with limited tightening torque see page 484 For inserts, see pages: GDMF (317) • GDMM-CC (664) • GDMN (319) • GDMT (317) • GDMU (319) • GDMY (318) • GDMY (full radius) (320) • GDMY-F (321) • GDPY (323) • GIA-K (long pocket) (330) • GIF (long pocket) (328) • GIF-E (W=8,10 full radius) (324) • GIF-E (W=8,10) (322) • GIPA/GIDA 8 (full radius) (334) LH GHDR/L-JHP (long pocket) CUT-GRIP Tools with Channels HF H for High-Pressure Coolant G 1/8"-28 typx2 WB for Grooving and Turning OAL Bar Max CDX WF B CWN-CWX Right-hand shown Designation CWN(1) CWX(2) CDX(3) H B OAL LH WF WB HF GHDL 32-8-JHP 6.60 8.30 25.00 32.0 32.0 170.00 55.5 29.00 6.00 32.0 GHDR 32-8-JHP 6.60 8.30 25.00 32.0 32.0 170.00 55.0 29.00 6.00 32.0 • For user guide and accessories see pages 475-492 (1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum For inserts, see pages: GDMF (322) • GDMM-CC (674) • GDMN (324) • GDMT (322) • GDMU (324) • GDMY (323) • GDMY (full radius) (325) • GDMY-F (326) • GIA-K (long pocket) (335) • GIF (long pocket) (333) • GIF-E (W=8,10 full radius) (329) • GIF-E (W=8,10) (327) • GIPA/GIDA 8 (full radius) (339) Flow Rate vs. Pressure 70 Bar 100 Bar 140 Bar Designation Flow Rate (liters/min) Flow Rate (liters/min) Flow Rate (liters/min) GHDR/L 32-8-JHP 13-16 19-21 22-24 Spare Parts Designation GHDR/L 32-8-JHP SR M6X25DIN912 HW 5.0(a) PLG 1/8ISO1179 (a) For optional key with limited tightening torque see page 484 313
