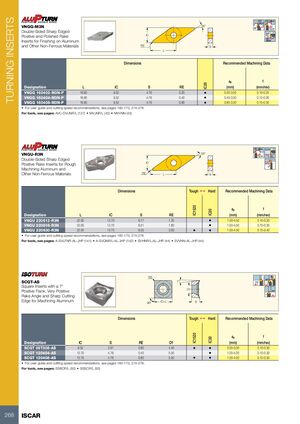

TURNING INSERTS 50° 70°MAX MAX VNGG-M3N 35° 93° 72.5º Double-Sided Sharp Edged 93º IC Positive and Polished Rake 50° Inserts for Finishing on Aluminum MAX and Other Non-Ferrous Materials RE S L Dimensions Recommended Machining Data ap f IC20 Designation L IC S RE (mm) (mm/rev) VNGG 160402-M3N-P 16.60 9.52 4.76 0.20 • 0.20-3.00 0.10-0.25 VNGG 160404-M3N-P 16.60 9.52 4.76 0.40 • 0.40-3.00 0.12-0.30 VNGG 160408-M3N-P 16.60 9.52 4.76 0.80 • 0.80-3.00 0.15-0.35 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: AVC-DVUNR/L (127) • MVJNR/L (43) • MVVNN (45) 70°MAX 107.5º VNGU-R3N 35° 35º 72.5º MAX Double-Sided Sharp Edged IC Positive Rake Inserts for Rough 107.5º Machining Aluminum and Other Non-Ferrous Materials RE L S Dimensions Tough 1 Hard Recommended Machining Data IC1520 IC20 ap f Designation L IC S RE (mm) (mm/rev) VNGU 220612-R3N 22.00 12.70 6.77 1.20 • 1.00-4.50 0.10-0.30 VNGU 220616-R3N 22.00 12.70 6.51 1.60 • 1.50-4.50 0.10-0.35 VNGU 220630-R3N 22.00 12.70 6.35 3.00 • • 1.50-4.50 0.15-0.40 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-SVLFNR-AL-JHP (141) • A-SVQNR/L-AL-JHP (142) • SVHNR/L-AL-JHP (44) • SVVNN-AL-JHP (44) RE 45º 45º SCGT-AS 7° 75º Square Inserts with a 7° D1 Positive Flank, Very Positive 45° Rake Angle and Sharp Cutting Edge for Machining Aluminum 90˚ IC=L S Dimensions Tough 1 Hard Recommended Machining Data IC1520 ap f IC20 Designation IC S RE D1 (mm) (mm/rev) SCGT 09T308-AS 9.52 3.97 0.80 4.40 • • 0.50-3.00 0.10-0.30 SCGT 120404-AS 12.70 4.76 0.40 5.50 • 1.00-4.00 0.10-0.30 SCGT 120408-AS 12.70 4.76 0.80 5.50 • • 1.00-4.00 0.10-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278. For tools, see pages: SSBCR/L (92) • SSSCR/L (92) 268 ISCAR
