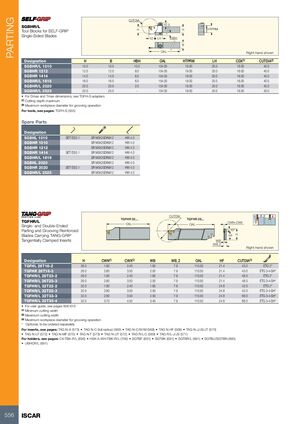

PARTING CUTDIA 10.3 SGBHR/L H H HTPRM Tool Blocks for SELF-GRIP Single-Sided Blades 12 LH HBH B OAL Right-hand shown Designation H B HBH OAL HTPRM LH CDX(1) CUTDIA(2) SGBHR/L 1010 10.0 10.0 10.0 154.00 19.00 20.0 16.00 40.0 SGBHR 1212 12.0 12.0 8.0 154.00 19.00 20.0 16.00 40.0 SGBHR 1414 14.0 14.0 6.0 154.00 19.00 20.0 16.00 40.0 SGBHR/L 1616 16.0 16.0 6.0 154.00 19.00 20.0 16.00 40.0 SGBHR/L 2020 20.0 20.0 2.0 154.00 19.00 20.0 16.00 40.0 SGBHR/L 2525 25.0 25.0 - 154.00 19.00 20.0 16.00 40.0 • For Dmax and Tmax dimensions, see TGFH-S adapters (1) Cutting depth maximum (2) Maximum workpiece diameter for grooving operation For tools, see pages: TGFH-S (555) Spare Parts Designation SGBHL 1010 SET ESG 1 SR M5X25DIN912 HW 4.0 SGBHR 1010 SR M5X25DIN912 HW 4.0 SGBHR 1212 SR M5X25DIN912 HW 4.0 SGBHR 1414 SET ESG 1 SR M5X25DIN912 HW 4.0 SGBHR/L 1616 SR M5X25DIN912 HW 4.0 SGBHL 2020 SR M5X25DIN912 HW 4.0 SGBHR 2020 SET ESG 1 SR M5X25DIN912 HW 4.0 SGBHR/L 2525 SR M5X25DIN912 HW 4.0 CUTDIA TGFHR 32... TGFHR 26... TGFHR/L CWN-CWX OAL OAL Single- and Double-Ended Parting and Grooving Reinforced 15° Blades Carrying TANG-GRIP HF H Tangentially Clamped Inserts WB WB_2 Right-hand shown Designation H CWN(1) CWX(2) WB WB_2 OAL HF CUTDIA(3) TGFHL 26T16-2 26.0 1.80 2.40 1.65 7.9 110.50 21.4 43.0 ETG 2* TGFHR 26T16-3 26.0 2.80 3.50 2.50 7.9 110.50 21.4 43.0 ETG 3-4-SH* TGFHR/L 26T23-2 26.0 1.80 2.40 1.65 7.9 110.50 21.4 46.0 ETG 2* TGFHR/L 26T23-3 26.0 2.80 3.50 2.50 7.9 110.50 21.4 46.0 ETG 3-4-SH* TGFHR/L 32T22-2 32.0 1.80 2.40 1.65 7.9 110.50 24.8 42.0 ETG 2* TGFHR/L 32T22-3 32.0 2.80 3.50 2.50 7.9 110.50 24.8 42.0 ETG 3-4-SH* TGFHR/L 32T33-3 32.0 2.80 3.50 2.50 7.9 110.50 24.8 66.0 ETG 3-4-SH* TGFHR/L 32T33-4 32.0 3.70 4.50 3.40 7.9 110.50 24.8 66.0 ETG 3-4-SH* • For user guide, see pages 606-615 (1) Minimum cutting width (2) Maximum cutting width (3) Maximum workpiece diameter for grooving operation * Optional, to be ordered separately For inserts, see pages: TAG N-A (573) • TAG N-C (full radius) (569) • TAG N-C/W/M (568) • TAG N-HF (568) • TAG N-J/JS/JT (570) • TAG N-LF (572) • TAG N-MF (570) • TAG N-T (573) • TAG N-UT (572) • TAG R/L-C (569) • TAG R/L-J/JS (571) For holders, see pages: C#-TBK-R/L (695) • HSK A-WH-TBK-R/L (706) • SGTBF (691) • SGTBK (691) • SGTBR/L (691) • SGTBU/SGTBN (690) • UBHCR/L (691) 556 ISCAR
