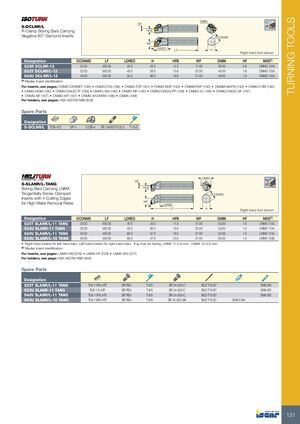

TURNING TOOLS DMIN HF S-DCLNR/L 95º R-Clamp Boring Bars Carrying HFB Negative 80° Diamond Inserts DCONMS WF LDRED H LF Right hand tool shown Designation DCONMS LF LDRED H HFB WF DMIN HF MIID(1) S25R DCLNR-12 25.00 200.00 45.0 23.0 12.3 17.00 36.00 0.8 CNMG 1204.. S32T DCLNR/L-12 32.00 300.00 45.0 28.0 15.8 22.00 40.00 1.8 CNMG 1204.. S40U DCLNR/L-12 40.00 350.00 55.0 36.0 19.8 27.00 48.00 1.8 CNMG 1204.. (1) Master insert identification For inserts, see pages: CNMG-CERMET (183) • CNMG-F3S (186) • CNMG-F3P (181) • CNMG-M3P (182) • CNMM-R3P (192) • CNMM-M4PW (192) • CNMG-F3M (185) • CNMG-M3M (185) • CNMG/CNGG-TF (189) • CNMG-GN (190) • CNMG-NR (190) • CNMG/CNGG-PP (189) • CNMG-VL (186) • CNMG/CNGG-SF (187) • CNMG-NF (187) • CNMG-WF (187) • CNMG-WG/NRW (188) • CNMA (188) For holders, see pages: HSK A63TM ABB (839) Spare Parts Designation S-DCLNR/L TCN 423 SP 4 LCGR-4 SR 10400270-25.5 T-15/5 DMIN HF S-SLANR/L-TANG 93º Boring Bars Carrying LNMX HFB Tangentially Screw Clamped DCONMS Inserts with 4 Cutting Edges WF for High Metal Removal Rates LDRED LF H Right hand tool shown Designation DCONMS LF LDRED H HFB WF DMIN HF MIID(1) S25T SLANR/L-11 TANG 25.00 300.00 40.0 23.0 11.5 17.00 53.00 1.0 LNMX 1104.. S32U SLANR-11 TANG 32.00 350.00 45.0 30.0 15.0 22.00 53.00 1.0 LNMX 1104.. S40V SLANR/L-11 TANG 40.00 400.00 60.0 37.0 18.5 27.00 53.00 1.5 LNMX 1104.. S50U SLANR/L-15 TANG 50.00 350.00 60.0 47.0 23.5 37.00 85.00 1.5 LNMX 1506.. • Right-hand inserts for left-hand bars. Left-hand inserts for right-hand bars. • ap max for facing: LNMX 11-2.8 mm, LNMX 15-3.8 mm. (1) Master insert identification For inserts, see pages: LNMX-HM (226) • LNMX-HT (226) • LNMX-WG (227) For holders, see page: HSK A63TM ABB (839) Spare Parts Designation S25T SLANR/L-11 TANG TLN 11R/L-HTI SR RS4 T-6/5 SR 34-550-C BLD T10/S7 SW6-SD S32U SLANR-11 TANG TLN 11L-HTI SR RS4 T-6/5 SR 34-550-C BLD T10/S7 SW6-SD S40V SLANR/L-11 TANG TLN 11R/L-HTI SR RS4 T-6/5 SR 34-550-C BLD T10/S7 SW6-SD S50U SLANR/L-15 TANG TLN 15R/L-HTI SR RS4 T-6/5 SR 34-535-SN BLD T15/S7 SW6-T-SH 131
