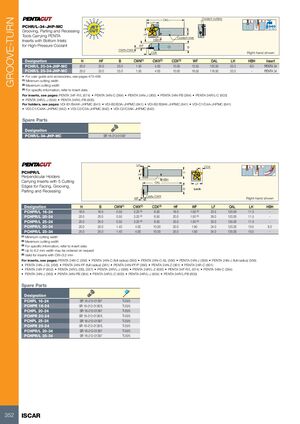

Токарные инструменты Iscar (часть 1) 2026 - страница 354

Coolant outlets GROOVE-TURN OAL LH PCHR/L-34-JHP-MC Bar Max Grooving, Parting and Recessing H Tools Carrying PENTA HF Lock Coolant inlet Inserts with Bottom Inlets HBH for High-Pressure Coolant WF B CWN-CWX CDX Right-hand shown Designation H HF B CWN(1) CWX(2) CDX(3) WF OAL LH HBH Insert PCHR/L 20-34-JHP-MC 20.0 20.0 20.0 1.50 4.00 10.00 13.55 103.50 33.5 6.0 PENTA 34 PCHR/L 25-34-JHP-MC 25.0 25.0 25.0 1.50 4.00 10.00 18.55 118.50 33.5 - PENTA 34 • For user guide and accessories, see pages 475-496 (1) Minimum cutting width (2) Maximum cutting width (3) For specific information, refer to insert data For inserts, see pages: PENTA 34F-R/L (674) • PENTA 34N-C (364) • PENTA 34N-J (365) • PENTA 34N-PB (364) • PENTA 34R/L-C (603) • PENTA 34R/L-J (604) • PENTA 34R/L-PB (605) For holders, see pages: VDI-B1/B4AK-JHPMC (841) • VDI-B2/B3A-JHPMC (841) • VDI-B2/B3AK-JHPMC (841) • VDI-C1/C4A-JHPMC (841) • VDI-C1/C4AK-JHPMC (842) • VDI-C2/C3A-JHPMC (842) • VDI-C2/C3AK-JHPMC (842) Spare Parts Designation PCHR/L-34-JHP-MC SR 16-212-01397 LH CDX PCHPR/L H HF Perpendicular Holders HBH Carrying Inserts with 5 Cutting OAL LF Edges for Facing, Grooving, B Lock Parting and Recessing CWN-CWX WF Right-hand shown Designation H B CWN(1) CWX(2) CDX(3) HF WF LF OAL LH HBH PCHPR/L 16-24 16.0 16.0 0.50 3.20 (4) 6.50 16.0 1.50 (5) 23.5 120.00 11.5 - PCHPR/L 20-24 20.0 20.0 0.50 3.20 (4) 6.50 20.0 1.50 (5) 28.0 120.00 11.5 - PCHPR/L 25-24 25.0 25.0 0.50 3.20 (4) 6.50 25.0 1.50 (5) 33.0 135.00 11.5 - PCHPR/L 20-34 20.0 20.0 1.40 4.00 10.00 20.0 1.90 34.0 120.00 15.0 6.0 PCHPR/L 25-34 25.0 25.0 1.40 4.00 10.00 25.0 1.90 34.0 135.00 15.0 - (1) Minimum cutting width (2) Maximum cutting width (3) For specific information, refer to insert data (4) Up to 6.2 mm width may be ordered on request (5) Valid for inserts with CW<3.2 mm For inserts, see pages: PENTA 24N-C (359) • PENTA 24N-C (full radius) (360) • PENTA 24N-C-SL (356) • PENTA 24N-J (358) • PENTA 24N-J (full radius) (359) • PENTA 24N-J-SL (356) • PENTA 24N-PF (full radius) (361) • PENTA 24N-PF/P (360) • PENTA 24N-Z (361) • PENTA 24R-C (601) • PENTA 24R-P (602) • PENTA 24R/L-DSL (357) • PENTA 24R/L-J (598) • PENTA 24R/L-Z (600) • PENTA 34F-R/L (674) • PENTA 34N-C (364) • PENTA 34N-J (365) • PENTA 34N-PB (364) • PENTA 34R/L-C (603) • PENTA 34R/L-J (604) • PENTA 34R/L-PB (605) Spare Parts Designation PCHPL 16-24 SR 16-212-01397 T-20/5 PCHPR 16-24 SR 16-212-01397L T-20/5 PCHPL 20-24 SR 16-212-01397 T-20/5 PCHPR 20-24 SR 16-212-01397L T-20/5 PCHPL 25-24 SR 16-212-01397 T-20/5 PCHPR 25-24 SR 16-212-01397L T-20/5 PCHPR/L 20-34 SR 16-212-01397 T-20/5 PCHPR/L 25-34 SR 16-212-01397 T-20/5 352 ISCAR
