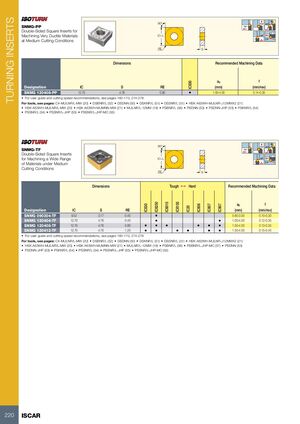

Токарные инструменты Iscar (часть 1) 2026 - страница 222

TURNING INSERTS 45º 90° 75º 45º SNMG-PP 75º Double-Sided Square Inserts for Machining Very Ductile Materials IC=L 45° 75º at Medium Cutting Conditions RE S Dimensions Recommended Machining Data ap f IC830 Designation IC S RE (mm) (mm/rev) SNMG 120408-PP 12.70 4.76 0.80 • 1.00-4.00 0.14-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: C#-MULNR/L-MW (20) • DSBNR/L (52) • DSDNN (50) • DSKNR/L (51) • DSSNR/L (51) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • PSBNR/L (56) • PSDNN (53) • PSDNN-JHP (53) • PSKNR/L (54) • PSSNR/L (54) • PSSNR/L-JHP (55) • PSSNR/L-JHP-MC (55) 45º 90° 75º 45º SNMG-TF 75º Double-Sided Square Inserts for Machining a Wide Range IC=L 45° 75º of Materials under Medium Cutting Conditions RE S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC6015 IC8150 IC830 IC806 IC807 IC907 IC20 Designation IC S RE (mm) (mm/rev) SNMG 090304-TF 9.52 3.17 0.40 • 0.80-3.00 0.10-0.30 SNMG 120404-TF 12.70 4.76 0.40 • • 1.00-4.00 0.12-0.35 SNMG 120408-TF 12.70 4.76 0.80 • • • • • • 1.00-4.00 0.13-0.35 SNMG 120412-TF 12.70 4.76 1.20 • • • • • • 1.50-4.00 0.15-0.40 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: C#-MULNR/L-MW (20) • DSBNR/L (52) • DSDNN (50) • DSKNR/L (51) • DSSNR/L (51) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • PSBNR/L (56) • PSBNR/L-JHP-MC (57) • PSDNN (53) • PSDNN-JHP (53) • PSKNR/L (54) • PSSNR/L (54) • PSSNR/L-JHP (55) • PSSNR/L-JHP-MC (55) 220 ISCAR
