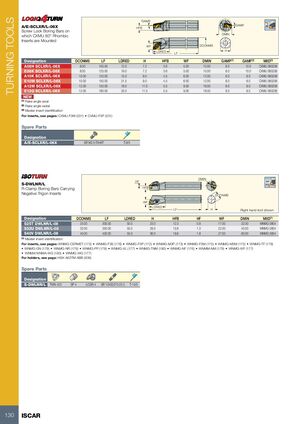

TURNING TOOLS GAMP GAMF A/E-SCLXR/L-06X HFB 95º Screw Lock Boring Bars on DMIN which CXMU 80° Rhombic Inserts are Mounted WF DCONMS LDRED H LF Designation DCONMS LF LDRED H HFB WF DMIN GAMP(1) GAMF(2) MIID(3) A08H SCLXR/L-06X 8.00 100.00 12.0 7.2 3.6 5.00 10.00 8.0 10.0 CXMU 060208 E08K SCLXR/L-06X 8.00 125.00 19.0 7.2 3.6 5.00 10.00 8.0 10.0 CXMU 060208 A10K SCLXR/L-06X 10.00 125.00 15.0 9.0 4.5 6.00 12.00 8.0 8.0 CXMU 060208 E10M SCLXR/L-06X 10.00 150.00 21.5 9.0 4.5 6.00 12.00 8.0 8.0 CXMU 060208 A12M SCLXR/L-06X 12.00 150.00 18.0 11.0 5.5 9.00 16.00 8.0 8.0 CXMU 060208 E12Q SCLXR/L-06X 12.00 180.00 25.0 11.0 5.5 9.00 16.00 8.0 8.0 CXMU 060208 NEW (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: CXMU-F3M (231) • CXMU-F3P (231) Spare Parts Designation A/E-SCLXR/L-06X SR M2.5-T8-MT T-8/5 DMIN HF 95º S-DWLNR/L R-Clamp Boring Bars Carrying HFB Negative Trigon Inserts DCONMS WF LDRED LF H Right hand tool shown Designation DCONMS LF LDRED H HFB HF WF DMIN MIID(1) S25T DWLNR/L-08 25.00 300.00 50.0 23.0 12.3 0.8 17.00 32.00 WNMG 0804 S32U DWLNR/L-08 32.00 350.00 55.0 29.0 15.8 1.3 22.00 40.00 WNMG 0804 S40V DWLNR/L-08 40.00 400.00 55.0 36.0 19.8 1.8 27.00 60.00 WNMG 0804 (1) Master insert identification For inserts, see pages: WNMG-CERMET (173) • WNMG-F3S (176) • WNMG-F3P (172) • WNMG-M3P (173) • WNMG-F3M (175) • WNMG-M3M (175) • WNMG-TF (178) • WNMG-GN (179) • WNMG-NR (179) • WNMG-PP (178) • WNMG-VL (177) • WNMG-TNM (180) • WNMG-NF (176) • WNMM-NM (179) • WNMG-WF (177) • WNMA/WNMA-WG (180) • WNMG-WG (177) For holders, see page: HSK A63TM ABB (839) Spare Parts Designation S-DWLNR/L TWN 423 SP 4 LCGR-4 SR 10400270-25.5 T-15/5 130 ISCAR
