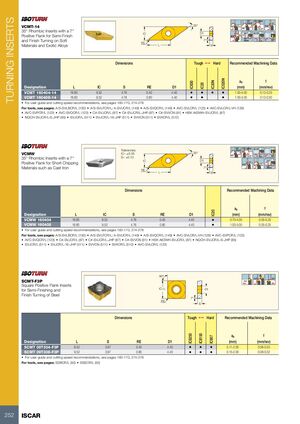

Токарные инструменты Iscar (часть 1) 2026 - страница 254

TURNING INSERTS 50° 70°MAX MAX 31º MAX VCMT-14 35° 91° 52º MAX 112° 93° 72.5º 35° Rhombic Inserts with a 7° IC D1 95º 107.5º Positive Flank for Semi-Finish 117.5° 25º MAX 48° and Finish Turning on Soft 7° 35º MAX MAX 95º RE Materials and Exotic Alloys L S Dimensions Tough 1 Hard Recommended Machining Data IC520N ap f IC20N IC830 IC20 Designation L IC S RE D1 (mm) (mm/rev) VCMT 160404-14 16.60 9.52 4.76 0.40 4.40 • • • • 1.00-5.00 0.12-0.25 VCMT 160408-14 16.60 9.52 4.76 0.80 4.40 • • • 1.00-5.00 0.12-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-SVLBCR/L (150) • A/S-SVLFCR/L; A-SVUCR/L (149) • A/S-SVQCR/L (149) • AVC-SVLCR/L (123) • AVC-SVLCR/L-VH (128) • AVC-SVPCR/L (123) • AVC-SVQCR/L (123) • C#-SVJCR/L (87) • C#-SVJCR/L-JHP (87) • C#-SVVCN (91) • HSK A63WH-SVJCR/L (87) • NQCH-SVJCR/L-S-JHP (85) • SVJCR/L (511) • SVJCR/L-16-JHP (511) • SVVCN (511) • SVXCR/L (512) 50° 70°MAX 107.5º Tolerances: MAX VCMW IC= ±0.05 35° 93° 72.5º 35º 95º 35° Rhombic Inserts with a 7° S= ±0.13 MAX IC D1 95º Positive Flank for Short Chipping 31º MAX 52º 112° 91° MAX 48° Materials such as Cast Iron RE 7° MAX L S Dimensions Recommended Machining Data ap f Designation L IC S RE D1 IC20 (mm) (mm/rev) VCMW 160404 16.60 9.52 4.76 0.40 4.40 • 0.70-4.00 0.05-0.25 VCMW 160408 16.60 9.52 4.76 0.80 4.40 • 1.00-5.00 0.05-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-SVLBCR/L (150) • A/S-SVLFCR/L; A-SVUCR/L (149) • A/S-SVQCR/L (149) • AVC-SVLCR/L-VH (128) • AVC-SVPCR/L (123) • AVC-SVQCR/L (123) • C#-SVJCR/L (87) • C#-SVJCR/L-JHP (87) • C#-SVVCN (91) • HSK A63WH-SVJCR/L (87) • NQCH-SVJCR/L-S-JHP (85) • SVJCR/L (511) • SVJCR/L-16-JHP (511) • SVVCN (511) • SVXCR/L (512) • AVC-SVLCR/L (123) 90° 45º 45º 45° SCMT-F3P 75º Square Positive Flank Inserts IC=L D1 for Semi-Finishing and Finish Turning of Steel 7° RE S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 IC807 Designation L S RE D1 (mm) (mm/rev) SCMT 09T304-F3P 9.52 3.97 0.40 4.40 • • • 0.11-2.00 0.06-0.25 SCMT 09T308-F3P 9.52 3.97 0.80 4.40 • • • 0.15-2.00 0.08-0.32 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: SSBCR/L (92) • SSSCR/L (92) 252 ISCAR
