Токарные инструменты Iscar (часть 1) 2026 - страница 596

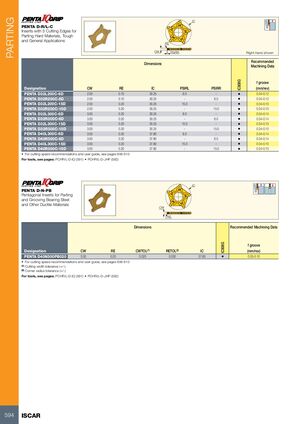

PARTING IC PENTA D-R/L-C Inserts with 5 Cutting Edges for Parting Hard Materials, Tough and General Applications RE CW PSIRR Right-hand shown Recommended Dimensions Machining Data IC808G f groove Designation CW RE IC PSIRL PSIRR (mm/rev) PENTA D32L200C-6D 2.00 0.10 30.25 6.0 - • 0.04-0.12 PENTA D32R200C-6D 2.00 0.10 30.25 - 6.0 • 0.04-0.12 PENTA D32L200C-15D 2.00 0.20 30.25 15.0 - • 0.04-0.10 PENTA D32R200C-15D 2.00 0.20 30.25 - 15.0 • 0.04-0.10 PENTA D32L300C-6D 3.00 0.20 30.25 6.0 - • 0.04-0.14 PENTA D32R300C-6D 3.00 0.20 30.25 - 6.0 • 0.04-0.14 PENTA D32L300C-15D 3.00 0.20 30.25 15.0 - • 0.04-0.10 PENTA D32R300C-15D 3.00 0.20 30.25 - 15.0 • 0.04-0.10 PENTA D40L300C-6D 3.00 0.20 37.80 6.0 - • 0.04-0.14 PENTA D40R300C-6D 3.00 0.20 37.80 - 6.0 • 0.04-0.14 PENTA D40L300C-15D 3.00 0.20 37.80 15.0 - • 0.04-0.10 PENTA D40R300C-15D 3.00 0.20 37.80 - 15.0 • 0.04-0.10 • For cutting speed recommendations and user guide, see pages 606-615 For tools, see pages: PCHR/L-D-IQ (591) • PCHR/L-D-JHP (592) IC PENTA D-N-PB Pentagonal Inserts for Parting and Grooving Bearing Steel and Other Ductile Materials CW RE Dimensions Recommended Machining Data IC808G f groove Designation CW RE CWTOL(1) RETOL(2) IC (mm/rev) PENTA D40N300PB020 3.00 0.20 0.020 0.030 37.80 • 0.03-0.10 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: PCHR/L-D-IQ (591) • PCHR/L-D-JHP (592) 594 ISCAR
