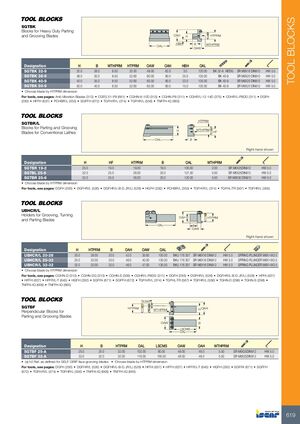

TOOL BLOCKS SGTBK Blocks for Heavy Duty Parting and Grooving Blades OAH H HTPRM HBH B WTHPRM OAL OAW Designation H B WTHPRM HTPRM OAW OAH HBH OAL SGTBK 32-9 32.0 28.0 8.50 32.00 48.00 62.0 3.0 120.00 BK 32-9 WEDG SR M6X16 DIN912 HW 5.0 SGTBK 38-9 38.0 35.0 8.50 52.60 60.00 90.0 25.0 135.00 BK 40-9 SR M6X20 DIN912 HW 5.0 SGTBK 40-9 40.0 35.0 8.50 52.60 60.00 90.0 23.0 135.00 BK 40-9 SR M6X20 DIN912 HW 5.0 SGTBK 50-9 50.0 40.0 8.50 52.60 65.00 90.0 15.0 135.00 BK 40-9 SR M6X20 DIN912 HW 5.0 • Choose blade by HTPRM dimension For tools, see pages: Anti-Vibration Blades (312) • CGFG 51-P8 (661) • CGHN-8-10D (315) • CGHN-P8 (311) • CGHR/L-12-14D (375) • CGHR/L-P8DG (311) • DGFH (293) • HFFH (637) • PCHBR/L (355) • SGFFH (672) • TGFH/R/L (374) • TGFHR/L (556) • TNFFH-IQ (665) HTPRM SGTBR/L Blocks for Parting and Grooving WTHPRM H HF Blades for Conventional Lathes OAL B Right-hand shown Designation H HF HTPRM B OAL WTHPRM SGTBR 19-2 25.0 19.0 19.00 19.0 100.00 2.00 SR M6X25DIN912 HW 5.0 SGTBL 25-6 32.0 25.0 26.00 20.0 121.50 5.00 SR M6X25DIN912 HW 5.0 SGTBR 25-6 32.0 25.0 26.00 20.0 120.00 5.00 SR M6X30 DIN912 HW 5.0 • Choose blade by HTPRM dimension For tools, see pages: DGFH (293) • DGFHR/L (526) • DGFHR/L-B-D..(R/L) (528) • HGFH (292) • PCHBR/L (355) • TGFH/R/L (374) • TGFHL-TR (567) • TGFHR/L (556) UBHCR/L Holders for Grooving, Turning OAH H HTPRM and Parting Blades OAL B OAW Right-hand shown Designation H HTPRM B OAH OAW OAL UBHCR/L 20-26 20.0 26.00 20.0 42.0 35.60 100.00 BKU 176 307 SR M6X16 DIN912 HW 5.0 SPRING PLUNGER M6X14X3.5 UBHCR/L 25-32 25.0 32.00 25.0 46.0 40.00 130.00 BKU 176 307 SR M6X16 DIN912 HW 5.0 SPRING PLUNGER M6X14X3.5 UBHCR/L 32-32 32.0 32.00 32.0 46.0 47.00 130.00 BKU 176 307 SR M6X16 DIN912 HW 5.0 SPRING PLUNGER M6X14X3.5 • Choose blade by HTPRM dimension For tools, see pages: CGHN-D (310) • CGHN-DG (310) • CGHN-S (309) • CGHR/L-P8DG (311) • DGFH (293) • DGFHR/L (526) • DGFHR/L-B-D..(R/L) (528) • HFFA (637) • HFFH (637) • HFFR/L-T (645) • HGFH (292) • SGFFA (671) • SGFFH (672) • TGFH/R/L (374) • TGFHL-TR (567) • TGFHR/L (556) • TGHN-D (298) • TGHN-S (298) • TNFFA-IQ (666) • TNFFH-IQ (665) h2 Ref.(a) SGTBF HTPRM H OAH WTHPRM Perpendicular Blocks for Parting and Grooving Blades OAW B LSCMS OAL Designation H B HTPRM OAL LSCMS OAW OAH WTHPRM SGTBF 25-A 25.0 25.0 32.00 102.00 80.00 48.00 48.0 5.50 SR M6X25DIN912 HW 5.0 SGTBF 32-A 32.0 32.0 32.00 116.00 100.00 48.00 48.0 5.50 SR M6X25DIN912 HW 5.0 • (a) h2 Ref. as defined for SELF-GRIP face grooving blades • Choose blade by HTPRM dimension For tools, see pages: DGFH (293) • DGFHR/L (526) • DGFHR/L-B-D..(R/L) (528) • HFFA (637) • HFFH (637) • HFFR/L-T (645) • HGFH (292) • SGFFA (671) • SGFFH (672) • TGFH/R/L (374) • TGFHR/L (556) • TNFFA-IQ (666) • TNFFH-IQ (665) 619
