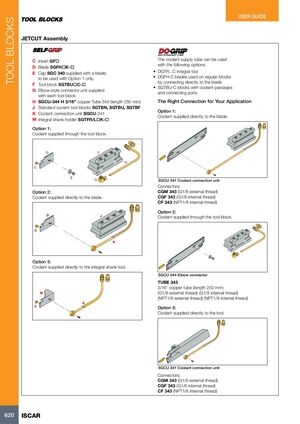

USER GUIDE TOOL BLOCKS JETCUT Assembly C Insert GF The coolant supply tube can be used with the following options: D Blade SGFHK- E Cap SGC 340 supplied with a blade; • DGTR...C integral tool to be used with Option 1 only. • DGFH-C blades used on regular blocks by connecting directly to the blade F Tool block SGTBUC- • SGTBU-C blocks with coolant passages G Elbow-style connector unit supplied and connecting ports with each tool block H SGCU-344 H 3/16” copper Tube 343 (length 250 mm) The Right Connection for Your Application J Standard current tool blocks SGTBN, SGTBU, SGTBF Option 1: K Coolant connection unit SGCU-341 Coolant supplied directly to the blade. M Integral shank holder SGTFR/LK- Option 1: Coolant supplied through the tool block. D F H C E G SGCU 341 Coolant connection unit Connectors: Option 2: CGM 343 (G1/8 external thread) Coolant supplied directly to the blade. CGF 343 (G1/8 internal thread) CF 343 (NPT1/8 internal thread) Option 2: D J Coolant supplied through the tool block. C K Option 3: Coolant supplied directly to the integral shank tool. SGCU 344 Elbow connector TUBE 343 3/16” copper tube (length 250 mm) M (G1/8 external thread) (G1/8 internal thread) (NPT1/8 external thread) (NPT1/8 internal thread) K C Option 3: Coolant supplied directly to the tool. SGCU 341 Coolant connection unit Connectors: CGM 343 (G1/8 external thread) CGF 343 (G1/8 internal thread) CF 343 (NPT1/8 internal thread) 620 ISCAR
