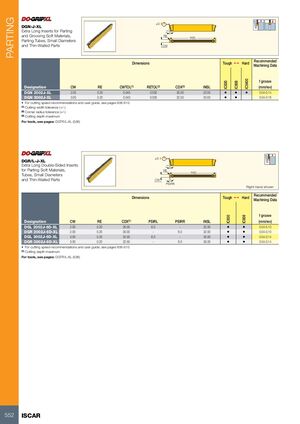

PARTING ±0.1 DGN-J-XL Extra Long Inserts for Parting 7° and Grooving Soft Materials, RE INSL Parting Tubes, Small Diameters and Thin-Walled Parts CW Recommended Dimensions Tough 1 Hard Machining Data f groove IC5400 IC830 IC808 Designation CW RE CWTOL(1) RETOL(2) CDX(3) INSL (mm/rev) DGN 2002J-XL 2.05 0.20 0.040 0.030 30.00 32.00 • • • 0.04-0.14 DGN 3002J-XL 3.00 0.20 0.040 0.030 32.50 35.00 • • 0.04-0.16 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum For tools, see pages: DGTR/L-XL (536) ±0.1 DGR/L-J-XL Extra Long Double-Sided Inserts 7° for Parting Soft Materials, RE INSL Tubes, Small Diameters and Thin-Walled Parts CW PSIRR Right-hand shown Recommended Dimensions Tough 1 Hard Machining Data f groove IC830 IC808 Designation CW RE CDX(1) PSIRL PSIRR INSL (mm/rev) DGL 2002J-6D-XL 2.00 0.20 30.00 6.0 - 32.00 • • 0.04-0.10 DGR 2002J-6D-XL 2.00 0.20 30.00 - 6.0 32.00 • • 0.04-0.10 DGL 3002J-6D-XL 3.00 0.20 32.50 6.0 - 35.00 • • 0.04-0.14 DGR 3002J-6D-XL 3.00 0.20 32.50 - 6.0 35.00 • • 0.04-0.14 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting depth maximum For tools, see pages: DGTR/L-XL (536) 552 ISCAR
