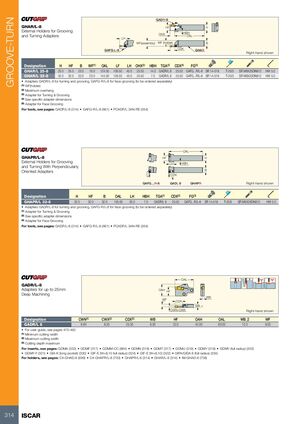

GROOVE-TURN GADR-8 GHAR/L-8 HF H External Holders for Grooving HBH OHX and Turning Adapters OAL LH WF(assembly) WF (holder) B GAFG-L-8 CDX GHAR Right-hand shown Designation H HF B WF(1) OAL LF LH OHX(2) HBH TGA(3) CDX(4) FG(5) GHAR/L 25-8 25.0 25.0 25.0 16.0 124.50 109.50 45.0 25.50 14.0 GADR/L 8 25.50 GAFG...R/L-8 SR 14-519 T-20/5 SR M6X25DIN912 HW 5.0 GHAR/L 32-8 32.0 32.0 32.0 23.0 144.50 129.50 45.0 25.50 7.0 GADR/L 8 25.50 GAFG...R/L-8 SR 14-519 T-20/5 SR M6X25DIN912 HW 5.0 • Adapters GADR/L-8 for turning and grooving, GAFG-R/L-8 for face-grooving (to be ordered separately) (1) WF(holder) (2) Maximum overhang (3) Adapter for Turning & Grooving (4) See specific adapter dimensions (5) Adapter for Face Grooving For tools, see pages: GADR/L-8 (314) • GAFG-R/L-8 (661) • PCADR/L 34N-RE (354) OAL GHAPR/L-8 HF H External Holders for Grooving HBH LH and Turning With Perpendicularly B Oriented Adapters CDX GAFG…R-8 GADL 8 GHAPR Right-hand shown Designation H HF B OAL LH HBH TGA(1) CDX(2) FG(3) GHAPR/L 32-8 32.0 32.0 32.0 155.00 30.0 7.0 GADR/L 8 25.50 GAFG...R/L-8 SR 14-519 T-20/5 SR M6X25DIN912 HW 5.0 • Adapters GADR/L-8 for turning and grooving, GAFG-R/L-8 for face-grooving (to be ordered separately) (1) Adapter for Turning & Grooving (2) See specific adapter dimensions (3) Adapter for Face Grooving For tools, see pages: GADR/L-8 (314) • GAFG-R/L-8 (661) • PCADR/L 34N-RE (354) OAL GADR/L-8 Adapters for up to 25mm OAH HF Deep Machining WB WF CDX WB_2 CWN-CWX Right-hand shown Designation CWN(1) CWX(2) CDX(3) WB HF OAH OAL WB_2 WF GADR/L 8 6.60 8.30 25.50 6.00 32.0 42.00 63.00 12.0 9.00 • For user guide, see pages 475-492 (1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum For inserts, see pages: GDMA (332) • GDMF (317) • GDMM-CC (664) • GDMN (319) • GDMT (317) • GDMU (319) • GDMY (318) • GDMY (full radius) (320) • GDMY-F (321) • GIA-K (long pocket) (330) • GIF-E (W=8,10 full radius) (324) • GIF-E (W=8,10) (322) • GIPA/GIDA 8 (full radius) (334) For holders, see pages: C#-GHAD-8 (699) • C#-GHAPR/L-8 (700) • GHAPR/L-8 (314) • GHAR/L-8 (314) • IM-GHAD-8 (708) 314 ISCAR
