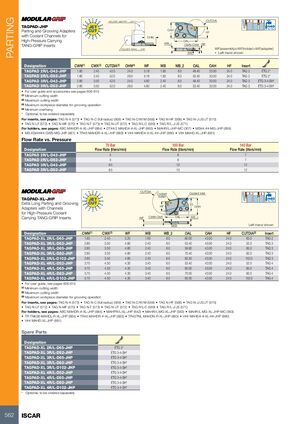

PARTING HOLDER: MAHPR-...-JHP CUTDIA TAGPAD-JHP Bar Max Parting and Grooving Adapters OAH HF with Coolant Channels for OHN High-Pressure Carrying OAL WB_2 TANG-GRIP Inserts CWN-CWX WF HOLDER: MAHL-...-JHP WF(assembly)=WF(holder)+WF(adapter) WB • Left-hand shown Designation CWN(1) CWX(2) CUTDIA(3) OHN(4) WF WB WB_2 OAL OAH HF Insert TAGPAD 2R/L-D42-JHP 1.80 2.40 42.0 24.0 5.18 1.65 6.0 48.40 33.00 24.0 TAG 2 ETG 2* TAGPAD 2R/L-D52-JHP 1.80 2.40 52.0 29.0 5.18 1.65 6.0 53.40 33.00 24.0 TAG 2 ETG 2* TAGPAD 3R/L-D42-JHP 2.80 3.50 42.0 24.0 4.80 2.40 6.0 48.40 33.00 24.0 TAG 3 ETG 3-4-SH* TAGPAD 3R/L-D52-JHP 2.80 3.50 52.0 29.0 4.80 2.40 6.0 53.40 33.00 24.0 TAG 3 ETG 3-4-SH* • For user guide and accessories see pages 606-615 (1) Minimum cutting width (2) Maximum cutting width (3) Maximum workpiece diameter for grooving operation (4) Minimum overhang * Optional, to be ordered separately For inserts, see pages: TAG N-A (573) • TAG N-C (full radius) (569) • TAG N-C/W/M (568) • TAG N-HF (568) • TAG N-J/JS/JT (570) • TAG N-LF (572) • TAG N-MF (570) • TAG N-T (573) • TAG N-UT (572) • TAG R/L-C (569) • TAG R/L-J/JS (571) For holders, see pages: ABC MAHDR-#-XL-JHP (884) • DT##/2 MAHD#-#-XL-JHP (860) • MAHR/L-JHP-MC (307) • MS##-##-MG-JHP (859) • MS-ES#####-GWS-MG-JHP (861) • TR45 MAHDR-#-XL-JHP (883) • V## MAHD#-#-XL-##-JHP (880) • V## MAHD-XL-JHP (881) Flow Rate vs. Pressure 70 Bar 100 Bar 140 Bar Designation Flow Rate (liters/min) Flow Rate (liters/min) Flow Rate (liters/min) TAGPAD 2R/L-D42-JHP 5 6 7 TAGPAD 2R/L-D52-JHP 5 6 7 TAGPAD 3R/L-D42-JHP 8�5 10 12 TAGPAD 3R/L-D52-JHP 8�5 10 12 CUTDIA Coolant inlet Coolant outlet TAGPAD-XL-JHP Bar Max Extra Long Parting and Grooving 33 HF OAH Adapters with Channels for High-Pressure Coolant Carrying TANG-GRIP Inserts WF CWN-CWX OAL WB_2 WB Left-hand shown Designation CWN(1) CWX(2) WF WB WB_2 OAL OAH HF CUTDIA(3) Insert TAGPAD-XL 2R/L-D65-JHP 1.80 2.40 5.20 1.60 6.0 60.00 43.00 24.0 65.0 TAG 2 TAGPAD-XL 3R/L-D52-JHP 2.80 3.50 4.80 2.40 6.0 53.40 43.00 24.0 52.0 TAG 3 TAGPAD-XL 3R/L-D65-JHP 2.80 3.50 4.80 2.40 6.0 59.90 43.00 24.0 65.0 TAG 3 TAGPAD-XL 3R/L-D82-JHP 2.80 3.50 4.80 2.40 6.0 70.40 43.00 24.0 82.0 TAG 3 TAGPAD-XL 3R/L-D102-JHP 2.80 3.50 4.80 2.40 6.0 82.50 43.00 24.0 102.0 TAG 3 TAGPAD-XL 4R/L-D52-JHP 3.70 4.50 4.30 3.40 6.0 53.40 43.00 24.0 52.0 TAG 4 TAGPAD-XL 4R/L-D65-JHP 3.70 4.50 4.30 3.40 6.0 60.00 43.00 24.0 65.0 TAG 4 TAGPAD-XL 4R/L-D82-JHP 3.70 4.50 4.30 3.40 6.0 70.00 43.00 24.0 82.0 TAG 4 TAGPAD-XL 4R/L-D102-JHP 3.70 4.50 4.30 3.40 6.0 83.00 43.00 24.0 102.0 TAG 4 • For user guide, see pages 606-615 (1) Minimum cutting width (2) Maximum cutting width (3) Maximum workpiece diameter for grooving operation For inserts, see pages: TAG N-A (573) • TAG N-C (full radius) (569) • TAG N-C/W/M (568) • TAG N-HF (568) • TAG N-J/JS/JT (570) • TAG N-LF (572) • TAG N-MF (570) • TAG N-T (573) • TAG N-UT (572) • TAG R/L-C (569) • TAG R/L-J/JS (571) For holders, see pages: ABC MAHDR-#-XL-JHP (884) • MAHPR/L-XL-JHP (642) • MAHR/L-MG-XL-JHP (563) • MAHR/L-MG-XL-JHP-MC (563) • TR TNK36 MAHDL-R-XL-JHP (884) • TR45 MAHDR-#-XL-JHP (883) • TR45TNL MAHDN-R-XL-JHP (883) • V## MAHD#-#-XL-##-JHP (880) • V## MAHD-XL-JHP (881) Spare Parts Designation TAGPAD-XL 2R/L-D65-JHP ETG 2* TAGPAD-XL 3R/L-D52-JHP ETG 3-4-SH* TAGPAD-XL 3R/L-D65-JHP ETG 3-4-SH* TAGPAD-XL 3R/L-D82-JHP ETG 3-4-SH* TAGPAD-XL 3R/L-D102-JHP ETG 3-4-SH* TAGPAD-XL 4R/L-D52-JHP ETG 3-4-SH* TAGPAD-XL 4R/L-D65-JHP ETG 3-4-SH* TAGPAD-XL 4R/L-D82-JHP ETG 3-4-SH* TAGPAD-XL 4R/L-D102-JHP ETG 3-4-SH* * Optional, to be ordered separately 562 ISCAR
