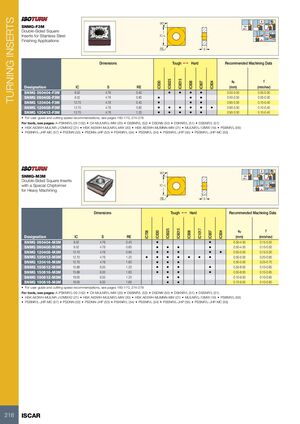

TURNING INSERTS 45º 90° 75º 45º SNMG-F3M 75º Double-Sided Square Inserts for Stainless Steel IC=L 45° 75º Finishing Applications RE S Dimensions Tough 1 Hard Recommended Machining Data ap f IC6025 IC6015 IC830 IC806 IC807 IC804 Designation IC S RE (mm) (mm/rev) SNMG 090404-F3M 9.52 4.76 0.40 • • • • 0.50-3.50 0.05-0.30 SNMG 090408-F3M 9.52 4.76 0.80 • • • 0.50-3.50 0.05-0.30 SNMG 120404-F3M 12.70 4.76 0.40 • • • 0.90-3.50 0.10-0.40 SNMG 120408-F3M 12.70 4.76 0.80 • • • • • • 0.90-3.50 0.10-0.40 SNMG 120412-F3M 12.70 4.76 1.20 • • • • • 0.90-3.50 0.10-0.40 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PSKNR/L-09 (152) • C#-MULNR/L-MW (20) • DSBNR/L (52) • DSDNN (50) • DSKNR/L (51) • DSSNR/L (51) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • PSBNR/L (56) • PSBNR/L-JHP-MC (57) • PSDNN (53) • PSDNN-JHP (53) • PSKNR/L (54) • PSSNR/L (54) • PSSNR/L-JHP (55) • PSSNR/L-JHP-MC (55) 45º 90° 75º 45º SNMG-M3M 75º Double-Sided Square Inserts with a Special Chipformer IC=L 45° 75º for Heavy Machining RE S Dimensions Tough 1 Hard Recommended Machining Data ap f IC6025 IC6015 IC1017 IC706 IC830 IC806 IC807 IC804 Designation IC S RE (mm) (mm/rev) SNMG 090404-M3M 9.52 4.76 0.40 • • 0.50-4.50 0.15-0.50 SNMG 090408-M3M 9.52 4.76 0.80 • • • • 0.50-4.50 0.15-0.50 SNMG 120408-M3M 12.70 4.76 0.80 • • • • • 0.50-5.00 0.15-0.50 SNMG 120412-M3M 12.70 4.76 1.20 • • • • • • • 0.50-5.00 0.20-0.60 SNMG 120416-M3M 12.70 4.76 1.60 • • • 0.50-5.00 0.25-0.70 SNMG 150612-M3M 15.88 6.35 1.20 • • • • 0.50-8.00 0.10-0.60 SNMG 150616-M3M 15.88 6.35 1.60 • • • • 0.50-8.00 0.10-0.65 SNMG 190612-M3M 19.05 6.35 1.20 • • 0.10-9.50 0.10-0.60 SNMG 190616-M3M 19.05 6.35 1.60 • • 0.10-9.50 0.10-0.65 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PSKNR/L-09 (152) • C#-MULNR/L-MW (20) • DSBNR/L (52) • DSDNN (50) • DSKNR/L (51) • DSSNR/L (51) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • PSBNR/L (56) • PSBNR/L-JHP-MC (57) • PSDNN (53) • PSDNN-JHP (53) • PSKNR/L (54) • PSSNR/L (54) • PSSNR/L-JHP (55) • PSSNR/L-JHP-MC (55) 218 ISCAR
