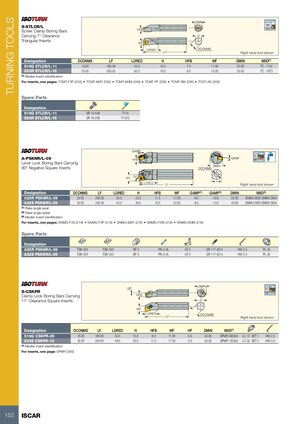

Токарные инструменты Iscar (часть 1) 2026 - страница 154

TURNING TOOLS DMIN 95º S-STLCR/L HFB Screw Clamp Boring Bars Carrying 7° Clearance H Triangular Inserts WF LDRED DCONMS LF Right hand tool shown Designation DCONMS LF LDRED H HFB WF DMIN MIID(1) S16Q STLCR/L-11 16.00 180.00 45.0 15.0 7.5 11.00 20.00 TC.. 1102 S20R STLCR/L-16 20.00 200.00 50.0 18.0 9.0 13.00 25.00 TC.. 16T3 (1) Master insert identification For inserts, see pages: TCMT-F3P (255) • TCMT-M3P (255) • TCMT-M3M (256) • TCMT-PF (256) • TCMT-SM (256) • TCGT-AS (269) Spare Parts Designation S16Q STLCR/L-11 SR 14-548 T-7/5 S20R STLCR/L-16 SR 16-236 T-15/5 GAMP A-PSKNR/L-09 HFB GAMF 75º Lever Lock Boring Bars Carrying DMIN 90° Negative Square Inserts DCONMS WF 75° LDRED H LF Right hand tool shown Designation DCONMS LF LDRED H HFB WF GAMP(1) GAMF(2) DMIN MIID(3) A25R PSKNR/L-09 25.00 200.00 35.0 23.0 11.5 17.00 -6.0 -15.0 32.00 SNMG 0903 SNMG 0904 A32S PSKNR/L-09 32.00 250.00 43.0 30.0 15.0 22.00 -6.0 -13.0 40.00 SNMG 0903 SNMG 0904 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: SNMG-F3S (219) • SNMG-F3P (216) • SNMG-M3P (216) • SNMG-F3M (218) • SNMG-M3M (218) Spare Parts Designation A25R PSKNR/L-09 TSN 323 TSN 333 SP 3 PN 3-3L LR 3 SR 117-2014 HW 2.5 PL 25 A32S PSKNR/L-09 TSN 323 TSN 333 SP 3 PN 3-3L LR 3 SR 117-2014 HW 2.5 PL 32 DMIN HF S-CSKPR 75º Clamp Lock Boring Bars Carrying HFB 11° Clearance Square Inserts H WF LDRED DCONMS LF Right hand tool shown Designation DCONMS LF LDRED H HFB WF HF DMIN MIID(1) S16Q CSKPR-09 16.00 180.00 34.0 15.0 8.0 11.00 0.5 20.00 SPMR 090304 LC 15 SET 1 HW 2.5 S25S CSKPR-12 25.00 250.00 48.0 23.0 11.5 17.00 0.0 30.00 SPMR 120304 LC 30 SET 2 HW 3.0 (1) Master insert identification For inserts, see page: SPMR (260) 152 ISCAR
