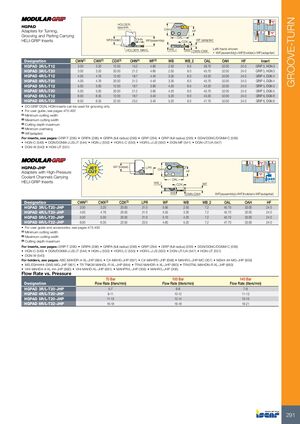

Токарные инструменты Iscar (часть 1) 2026 - страница 293

GROOVE-TURN HOLDER: HGPAD MAHPR OAH Adapters for Turning, HF Grooving and Parting Carrying OAL HELI-GRIP Inserts WF(holder) OHN WF(assembly) WF (adapter) CDX HOLDER: MAHL WB_2 WB CWN-CWX Left-hand shown • WF(assembly)=WF(holder)+WF(adapter) Designation CWN(1) CWX(2) CDX(3) OHN(4) WF(5) WB WB_2 OAL OAH HF Insert HGPAD 3R/L-T12 3.00 3.20 12.00 15.2 4.80 2.50 6.0 39.70 32.00 24.0 GRIP 3, HGN 3 HGPAD 3R/L-T20 3.00 3.20 20.00 21.2 4.80 2.50 6.0 45.70 32.00 24.0 GRIP 3, HGN 3 HGPAD 4R/L-T12 4.00 4.76 12.00 18.7 4.40 3.30 6.0 43.20 32.00 24.0 GRIP 4, DGN 4 HGPAD 4R/L-T20 4.00 4.76 20.00 21.2 4.40 3.30 6.0 45.70 32.00 24.0 GRIP 4, DGN 4 HGPAD 5R/L-T12 5.00 5.00 12.00 18.7 3.90 4.20 6.0 43.20 32.00 24.0 GRIP 5, DGN 5 HGPAD 5R/L-T20 5.00 5.00 20.00 21.2 3.90 4.20 6.0 45.70 32.00 24.0 GRIP 5, DGN 5 HGPAD 6R/L-T12 6.00 6.35 12.00 18.7 3.40 5.20 6.0 43.20 32.00 24.0 GRIP 6, DGN 6 HGPAD 6R/L-T22 6.00 6.35 22.00 23.2 3.40 5.20 6.0 47.70 32.00 24.0 GRIP 6, DGN 6 • DO-GRIP DGN, HGN inserts can be used for grooving only • For user guide, see pages 475-492 (1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum (4) Minimum overhang (5) WF(adapter) For inserts, see pages: GRIP-T (295) • GRIPA (296) • GRIPA (full radius) (296) • GRIP (294) • GRIP (full radius) (295) • DGN/DGNC/DGNM-C (539) • HGN-C (549) • DGN/DGNM-J/JS/JT (544) • HGN-J (550) • HGR/L-C (550) • HGR/L-J/JS (550) • DGN-MF (541) • DGN-UT/UA (547) • DGN-W (540) • HGN-UT (551) HGPAD-JHP WF (holder) LPR OAH Adapters with High-Pressure HF Coolant Channels Carrying OAL HELI-GRIP Inserts WB_2 WF Bar Max CDX WB CWN-CWX WF(assembly)=WF(holder)+WF(adapter) Designation CWN(1) CWX(2) CDX(3) LPR WF WB WB_2 OAL OAH HF HGPAD 3R/L-T20-JHP 3.00 3.20 20.00 21.0 5.95 2.50 7.2 45.70 33.00 24.0 HGPAD 4R/L-T20-JHP 4.00 4.76 20.00 21.0 5.55 3.30 7.2 45.70 33.00 24.0 HGPAD 5R/L-T20-JHP 5.00 5.00 20.00 21.0 5.10 4.20 7.2 45.70 33.00 24.0 HGPAD 6R/L-T22-JHP 6.00 6.35 22.00 23.0 4.60 5.20 7.2 47.70 33.00 24.0 • For user guide and accessories, see pages 475-492 (1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum For inserts, see pages: GRIP-T (295) • GRIPA (296) • GRIPA (full radius) (296) • GRIP (294) • GRIP (full radius) (295) • DGN/DGNC/DGNM-C (539) • HGN-C (549) • DGN/DGNM-J/JS/JT (544) • HGN-J (550) • HGR/L-C (550) • HGR/L-J/JS (550) • DGN-UT/UA (547) • HGN-UT (551) • DGN-W (540) For holders, see pages: ABC MAHDR-#-XL-JHP (884) • C#-MAHD-JHP (697) • C#-MAHPD-JHP (698) • MAHR/L-JHP-MC (307) • MS##-##-MG-JHP (859) • MS-ES#####-GWS-MG-JHP (861) • TR TNK36 MAHDL-R-XL-JHP (884) • TR45 MAHDR-#-XL-JHP (883) • TR45TNL MAHDN-R-XL-JHP (883) • V## MAHD#-#-XL-##-JHP (880) • V## MAHD-XL-JHP (881) • MAHPR/L-JHP (308) • MAHR/L-JHP (306) Flow Rate vs. Pressure 70 Bar 100 Bar 140 Bar Designation Flow Rate (liters/min) Flow Rate (liters/min) Flow Rate (liters/min) HGPAD 3R/L-T20-JHP 5-7 6-8 7-9 HGPAD 4R/L-T20-JHP 9-11 10-12 11-13 HGPAD 5R/L-T20-JHP 11-13 12-14 13-15 HGPAD 6R/L-T22-JHP 16-18 16-18 19-21 291
