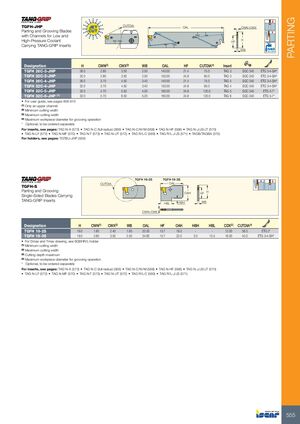

PARTING TGFH-JHP CUTDIA OAL CWN-CWX Parting and Grooving Blades with Channels for Low and Max Min High-Pressure Coolant Min Max H HF Carrying TANG-GRIP Inserts Min Max WB Bar Max Designation H CWN(2) CWX(3) WB OAL HF CUTDIA(4) Insert TGFH 26C-3-JHP 26.0 2.80 3.50 2.50 140.00 21.4 75.0 TAG 3 SGC 340 ETG 3-4-SH* TGFH 32C-3-JHP 32.0 2.80 3.50 2.50 150.00 24.8 90.0 TAG 3 SGC 340 ETG 3-4-SH* TGFH 26C-4-JHP 26.0 3.70 4.50 3.40 140.00 21.4 75.0 TAG 4 SGC 340 ETG 3-4-SH* TGFH 32C-4-JHP 32.0 3.70 4.50 3.40 150.00 24.8 90.0 TAG 4 SGC 340 ETG 3-4-SH* TGFH 32C-5-JHP 32.0 4.70 5.50 4.00 160.00 24.8 120.0 TAG 5 SGC 340 ETG 5-7* TGFH 32C-6-JHP (1) 32.0 5.70 6.50 5.20 160.00 24.8 120.0 TAG 6 SGC 340 ETG 5-7* • For user guide, see pages 606-615 (1) Only an upper channel (2) Minimum cutting width (3) Maximum cutting width (4) Maximum workpiece diameter for grooving operation * Optional, to be ordered separately For inserts, see pages: TAG N-A (573) • TAG N-C (full radius) (569) • TAG N-C/W/M (568) • TAG N-HF (568) • TAG N-J/JS/JT (570) • TAG N-LF (572) • TAG N-MF (570) • TAG N-T (573) • TAG N-UT (572) • TAG R/L-C (569) • TAG R/L-J/JS (571) • TAGB/TAGBA (375) For holders, see pages: TGTBU-JHP (559) TGFH 19-2S TGFH 19-3S CUTDIA OAL TGFH-S Parting and Grooving OAH HF H Single-Sided Blades Carrying TANG-GRIP Inserts HBH WB HBL CWN-CWX Designation H CWN(1) CWX(2) WB OAL HF OAH HBH HBL CDX(3) CUTDIA(4) TGFH 19-2S 19.0 1.80 2.40 1.65 32.00 15.7 19.0 - - 12.00 36.0 ETG 2* TGFH 19-3S 19.0 2.80 3.50 2.50 34.60 15.7 22.0 3.0 15.5 16.00 40.0 ETG 3-4-SH* • For Dmax and Tmax drawing, see SGBHR/L holder (1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum (4) Maximum workpiece diameter for grooving operation * Optional, to be ordered separately For inserts, see pages: TAG N-A (573) • TAG N-C (full radius) (569) • TAG N-C/W/M (568) • TAG N-HF (568) • TAG N-J/JS/JT (570) • TAG N-LF (572) • TAG N-MF (570) • TAG N-T (573) • TAG N-UT (572) • TAG R/L-C (569) • TAG R/L-J/JS (571) 555
