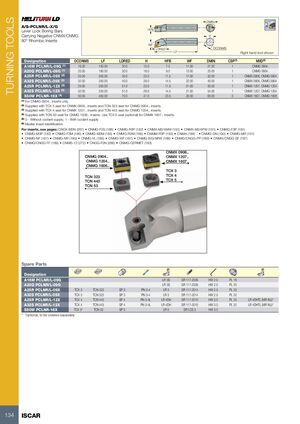

Токарные инструменты Iscar (часть 1) 2026 - страница 136

TURNING TOOLS DMIN A/S-PCLNR/L-X/G 95º HFB Lever Lock Boring Bars Carrying Negative CNMX/CNMG H 80° Rhombic Inserts WF LDRED DCONMS LF Right hand tool shown Designation DCONMS LF LDRED H HFB WF DMIN CSP(5) MIID(6) A16M PCLNR/L-09G (1) 16.00 150.00 30.0 15.0 7.5 11.00 21.00 1 CNMG 0904.. A20Q PCLNR/L-09G (1) 20.00 180.00 30.0 18.0 9.0 13.00 25.00 1 CNMG 0904.. A25R PCLNR/L-09X (2) 25.00 200.00 35.0 23.0 11.5 17.00 32.00 1 CNMX 0906, CNMG 0904 A32S PCLNR/L-09X (2) 32.00 250.00 40.0 29.0 14.5 22.00 40.00 1 CNMX 0906, CNMG 0904 A25R PCLNR/L-12X (3) 25.00 200.00 51.0 23.0 11.5 21.00 50.00 1 CNMX 1207, CNMG 1204 A32S PCLNR/L-12X (3) 32.00 250.00 51.0 29.0 14.5 21.00 54.00 1 CNMX 1207, CNMG 1204 S50W PCLNR-16X (4) 50.00 450.00 70.0 47.0 23.5 35.00 63.00 0 CNMX 1607, CNMG 1606 (1) For CNMG 0904.. inserts only (2) Supplied with TCX 3 seat for CNMX 0906.. inserts and TCN 323 seat for CNMG 0904.. inserts. (3) Supplied with TCX 4 seat for CNMX 1207.. inserts and TCN 443 seat for CNMG 1204.. inserts. (4) Supplied with TCN 53 seat for CNMG 1606.. inserts. Use TCX 5 seat (optional) for CNMX 1607.. inserts. (5) 0 - Without coolant supply, 1 - With coolant supply (6) Master insert identification For inserts, see pages: CNGX-M3N (267) • CNMG-F3S (186) • CNMG-R3P (182) • CNMX-M3/4MW (191) • CNMX-M3/4PW (191) • CNMG-F3P (181) • CNMG-M3P (182) • CNMG-F3M (185) • CNMG-M3M (185) • CNMG-R3M (186) • CNMM-R3P (192) • CNMA (188) • CNMG-GN (190) • CNMG-MR (191) • CNMG-NF (187) • CNMG-NR (190) • CNMG-VL (186) • CNMG-WF (187) • CNMG-WG/NRW (188) • CNMG/CNGG-PP (189) • CNMG/CNGG-SF (187) • CNMG/CNGG-TF (189) • CNMS-12 (272) • CNGG-F3N (266) • CNMG-CERMET (183) CNMX 0906.. CNMG 0904.. CNMX 1207.. CNMG 1204.. CNMX 1607.. CNMG 1606.. TCX 3 TCN 323 TCX 4 TCN 443 TCX 5 TCN 53 Spare Parts Designation A16M PCLNR/L-09G LR 3S SR 117-2009 HW 2.0 PL 16 A20Q PCLNR/L-09G LR 3S SR 117-2009 HW 2.0 PL 20 A25R PCLNR/L-09X TCX 3 TCN 323 SP 3 PN 3-4 LR 3 SR 117-2014 HW 2.5 PL 25 A32S PCLNR/L-09X TCX 3 TCN 323 SP 3 PN 3-4 LR 3 SR 117-2014 HW 2.5 PL 32 A25R PCLNR/L-12X TCX 4 TCN 443 SP 4 PN 3-4L LR 4DH SR 117-2010 HW 3.0 PL 25 LR 4DHTL (MR INJ)* A32S PCLNR/L-12X TCX 4 TCN 443 SP 4 PN 3-4L LR 4DH SR 117-2010 HW 3.0 PL 32 LR 4DHTL (MR INJ)* S50W PCLNR-16X TCX 5* TCN 53 SP 5 LR 5 SR LCS 5 HW 3.0 * Optional, to be ordered separately 134 ISCAR
