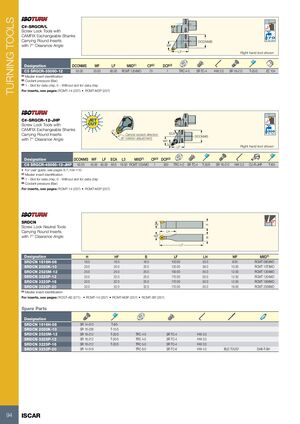

TURNING TOOLS C#-SRGCR/L Screw Lock Tools with CAMFIX Exchangeable Shanks 70 Carrying Round Inserts DCONMS Bar Max with 7° Clearance Angle WF LF Right hand tool shown Designation DCONMS WF LF MIID(1) CP(2) DCP(3) C5 SRGCR-35060-12 50.00 35.00 60.00 RCMT 1204MO 70 1 TRC 4-0 SR TC-4 HW 3.0 SR 16-212 T-20/5 EZ 104 (1) Master insert identification (2) Coolant pressure (Bar) (3) 1 - Slot for data chip, 0 - Without slot for data chip For inserts, see pages: RCMT-14 (257) • RCMT-M3P (257) C#-SRGCR-12-JHP Screw Lock Tools with CAMFIX Exchangeable Shanks 4° Carrying Round Inserts Central coolant direction ECA Bar Max 4° DCONMS with 7° Clearance Angle (8° rotation adjustment) WF L3 LF Right hand tool shown Designation DCONMS WF LF ECA L3 MIID(1) CP(3) DCP(2) C6 SRGCR-45065-12-JHP 63.00 45.00 65.00 60.0 16.00 RCMT 1204MO 1 300 TRC 4-0 SR TC-4 T-20/5 SR 16-212 HW 3.0 CU-R-JHP T-8/5 • For user guide, see pages 6-7,104-110 (1) Master insert identification (2) 1 - Slot for data chip, 0 - Without slot for data chip (3) Coolant pressure (Bar) For inserts, see pages: RCMT-14 (257) • RCMT-M3P (257) SRDCN HF H Screw Lock Neutral Tools Carrying Round Inserts LH with 7° Clearance Angle WF B LF Designation H HF B LF LH WF MIID(1) SRDCN 1616H-08 16.0 16.0 16.0 100.00 33.0 8.00 RCMT 0803MO SRDCN 2020K-10 20.0 20.0 20.0 125.00 38.0 10.00 RCMT 10T3MO SRDCN 2525M-12 25.0 25.0 25.0 150.00 50.0 12.50 RCMT 1204MO SRDCN 3225P-12 32.0 32.0 25.0 170.00 50.0 12.50 RCMT 1204MO SRDCN 3225P-16 32.0 32.0 25.0 170.00 50.0 12.50 RCMT 1606MO SRDCN 3232P-20 32.0 32.0 32.0 170.00 50.0 16.00 RCMT 2006MO (1) Master insert identification For inserts, see pages: RCGT-AS (271) • RCMT-14 (257) • RCMT-M3P (257) • RCMT-SR (257) Spare Parts Designation SRDCN 1616H-08 SR 14-513 T-8/5 SRDCN 2020K-10 SR 16-236 T-15/5 SRDCN 2525M-12 SR 16-212 T-20/5 TRC 4-0 SR TC-4 HW 3.0 SRDCN 3225P-12 SR 16-212 T-20/5 TRC 4-0 SR TC-4 HW 3.0 SRDCN 3225P-16 SR 16-212 T-20/5 TRC 5-0 SR TC-4 HW 3.0 SRDCN 3232P-20 SR 14-519 TRC 6-0 SR TC-6 HW 4.0 BLD T20/S7 SW6-T-SH 94 ISCAR
