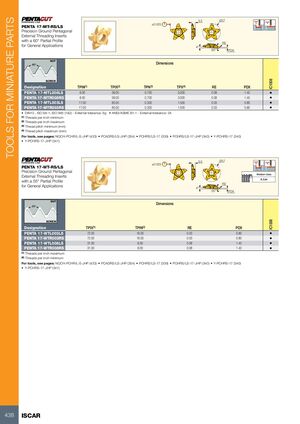

TOOLS FOR MINIATURE PARTS 3.5 Ø17 ±0.025 PENTA 17-MT-RS/LS Precision Ground Pentagonal External Threading Inserts with a 60° Partial Profile RE for General Applications 4° 60° PDX NUT 60° Dimensions IC1008 SCREW Designation TPIN(1) TPIX(2) TPN(3) TPX(4) RE PDX PENTA 17-MTL008LS 8.00 36.00 0.700 3.000 0.08 1.40 • PENTA 17-MTR008RS 8.00 36.00 0.700 3.000 0.08 1.40 • PENTA 17-MTL003LS 17.00 80.00 0.300 1.500 0.03 0.80 • PENTA 17-MTR003RS 17.00 80.00 0.300 1.500 0.03 0.80 • • DIN13 , ISO 68-1, ISO 965 (1&2) - External tolerance: 6g • ANSI/ASME B1.1 - External tolerance: 2A (1) Threads per inch minimum (2) Threads per inch maximum (3) Thread pitch minimum (mm) (4) Thread pitch maximum (mm) For tools, see pages: NQCH-PCHR/L-S-JHP (433) • PCADRS/LS-JHP (354) • PCHRS/LS-17 (339) • PCHRS/LS-17-JHP (340) • Y-PCHRS-17 (340) • Y-PCHRS-17-JHP (341) 3.5 Ø17 ±0.025 PENTA 17-WT-RS/LS Precision Ground Pentagonal Medium class External Threading Inserts B.S.84 with a 55° Partial Profile RE for General Applications 4° 55° PDX NUT Dimensions 55° IC1008 SCREW Designation TPIX(1) TPIN(2) RE PDX PENTA 17-WTL003LS 72.00 16.00 0.03 0.80 • PENTA 17-WTR003RS 72.00 16.00 0.03 0.80 • PENTA 17-WTL008LS 31.00 8.00 0.08 1.40 • PENTA 17-WTR008RS 31.00 8.00 0.08 1.40 • (1) Threads per inch maximum (2) Threads per inch minimum For tools, see pages: NQCH-PCHR/L-S-JHP (433) • PCADRS/LS-JHP (354) • PCHRS/LS-17 (339) • PCHRS/LS-17-JHP (340) • Y-PCHRS-17 (340) • Y-PCHRS-17-JHP (341) 438 ISCAR
