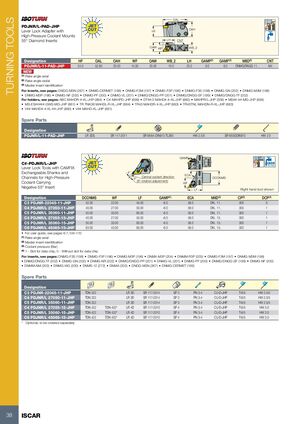

Токарные инструменты Iscar (часть 1) 2026 - страница 40

TURNING TOOLS OAL 95º PDJNR/L-PAD-JHP 95º OAH Lever Lock Adapter with HF High-Pressure Coolant Mounts 55° Diamond Inserts LH CNT OAW WF WB_2 Designation HF OAL OAH WF OAW WB_2 LH GAMP(1) GAMF(2) MIID(3) CNT PDJNR/L-11-PAD-JHP 24.0 52.80 33.00 15.00 20.00 10.0 23.0 6.0 6.0 DNMG/DNGG 11.. M4 NEW (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: DNGG-M3N (267) • DNMG-CERMET (199) • DNMG-F3M (197) • DNMG-F3P (196) • DNMG-F3S (198) • DNMG-GN (202) • DNMG-M3M (198) • DNMG-M3P (196) • DNMG-NF (200) • DNMG-PF (200) • DNMG-VL (201) • DNMG/DNGG-PP (201) • DNMG/DNGG-SF (199) • DNMG/DNGG-TF (202) For holders, see pages: ABC MAHDR-#-XL-JHP (884) • C#-MAHPD-JHP (698) • DT##/2 MAHD#-#-XL-JHP (860) • MAHPR/L-JHP (308) • MS##-##-MG-JHP (859) • MS-ES#####-GWS-MG-JHP (861) • TR TNK36 MAHDL-R-XL-JHP (884) • TR45 MAHDR-#-XL-JHP (883) • TR45TNL MAHDN-R-XL-JHP (883) • V## MAHD#-#-XL-##-JHP (880) • V## MAHD-XL-JHP (881) Spare Parts Designation PDJNR/L-11-PAD-JHP LR 3DS SR 117-2011 SR M4X4 DIN913 TL360 HW 2.5/5 SR M3X3DIN913 HW 2.0 GAMP 27° MAX C#-PDJNR/L-JHP 93° Bar Max Lever Lock Tools with CAMFIX Exchangeable Shanks and 4° ECA Channels for High-Pressure Central coolant direction DCONMS 4° (8° rotation adjustment) Coolant Carrying WF Negative 55° Insert LF Right hand tool shown Designation DCONMS WF LF GAMP(1) ECA MIID(2) CP(3) DCP(4) C3 PDJNR-22045-11-JHP 32.00 22.00 45.00 -6.0 58.0 DN.. 11.. 300 0 C4 PDJNR/L 27050-11-JHP 40.00 27.00 50.00 -6.0 58.0 DN.. 11.. 300 1 C5 PDJNR/L 35060-11-JHP 50.00 35.00 60.00 -6.0 58.0 DN.. 11.. 300 1 C4 PDJNR/L 27055-15-JHP 40.00 27.00 55.00 -6.0 58.0 DN.. 15.. 300 1 C5 PDJNR/L 35060-15-JHP 50.00 35.00 60.00 -6.0 58.0 DN.. 15.. 300 1 C6 PDJNR/L 45065-15-JHP 63.00 45.00 65.00 -6.0 58.0 DN.. 15.. 300 1 • For user guide, see pages 6-7,104-110 (1) Rake angle axial (2) Master insert identification (3) Coolant pressure (Bar) (4) 1 - Slot for data chip, 0 - Without slot for data chip For inserts, see pages: DNMG-F3S (198) • DNMG-F3P (196) • DNMG-M3P (196) • DNMX-M3P (204) • DNMM-R3P (203) • DNMG-F3M (197) • DNMG-M3M (198) • DNMG/DNGG-TF (202) • DNMG-GN (202) • DNMG-NR (202) • DNMG/DNGG-PP (201) • DNMG-VL (201) • DNMG-PF (200) • DNMG/DNGG-SF (199) • DNMG-NF (200) • DNMM-NM (203) • DNMG-WG (200) • DNMS-12 (272) • DNMA (203) • DNGG-M3N (267) • DNMG-CERMET (199) Spare Parts Designation C3 PDJNR-22045-11-JHP TDN 322 LR 3D SR 117-2014 SP 3 PN 3-4 CU-D-JHP T-8/5 HW 2.5/5 C4 PDJNR/L 27050-11-JHP TDN 322 LR 3D SR 117-2014 SP 3 PN 3-4 CU-D-JHP T-8/5 HW 2.5/5 C5 PDJNR/L 35060-11-JHP TDN 322 LR 3D SR 117-2014 SP 3 PN 3-4 CU-D-JHP T-8/5 HW 2.5/5 C4 PDJNR/L 27055-15-JHP TDN 422 TDN 432* LR 4D SR 117-2010 SP 4 PN 3-4 CU-D-JHP T-8/5 HW 3.0 C5 PDJNR/L 35060-15-JHP TDN 422 TDN 432* LR 4D SR 117-2010 SP 4 PN 3-4 CU-D-JHP T-8/5 HW 3.0 C6 PDJNR/L 45065-15-JHP TDN 422 TDN 432* LR 4D SR 117-2010 SP 4 PN 3-4 CU-D-JHP T-8/5 HW 3.0 * Optional, to be ordered separately 38 ISCAR
