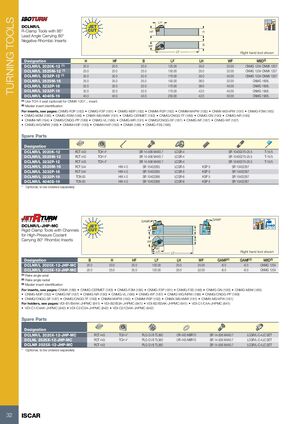

TURNING TOOLS LH 95º DCLNR/L 95º R-Clamp Tools with 95° HF H Lead Angle Carrying 80° Negative Rhombic Inserts WF B LF Right hand tool shown Designation H HF B LF LH WF MIID(2) DCLNR/L 2020K-12 (1) 20.0 20.0 20.0 125.00 35.0 25.00 CNMG 1204 CNMX 1207 DCLNR/L 2525M-12 (1) 25.0 25.0 25.0 150.00 35.0 32.00 CNMG 1204 CNMX 1207 DCLNR/L 3232P-12 (1) 32.0 32.0 32.0 170.00 35.0 40.00 CNMG 1204 CNMX 1207 DCLNR/L 2525M-16 25.0 25.0 25.0 150.00 36.0 32.00 CNMG 1606.. DCLNR/L 3232P-16 32.0 32.0 32.0 170.00 36.0 40.00 CNMG 1606.. DCLNR/L 3232P-19 32.0 32.0 32.0 170.00 42.0 40.00 CNMG 1906.. DCLNR/L 4040S-19 40.0 40.0 40.0 250.00 42.0 50.00 CNMG 1906.. (1) Use TCH 4 seat (optional) for CNMX 1207... insert. (2) Master insert identification For inserts, see pages: CNMG-R3P (182) • CNMG-F3P (181) • CNMG-M3P (182) • CNMM-R3P (192) • CNMM-M4PW (192) • CNMX-M3/4PW (191) • CNMG-F3M (185) • CNMG-M3M (185) • CNMG-R3M (186) • CNMX-M3/4MW (191) • CNMG-CERMET (183) • CNMG/CNGG-TF (189) • CNMG-GN (190) • CNMG-NR (190) • CNMM-NR (194) • CNMG/CNGG-PP (189) • CNMG-VL (186) • CNMG-MR (191) • CNMG/CNGG-SF (187) • CNMG-NF (187) • CNMG-WF (187) • CNMG-WG/NRW (188) • CNMM-H3P (193) • CNMM-H4P (193) • CNMA (188) • CNMG-F3S (186) Spare Parts Designation DCLNR/L 2020K-12 RCT 443 TCH 4* SR 14-506 M4X0.7 LCGR-4 SR 10400270-25.5 T-15/5 DCLNR/L 2525M-12 RCT 443 TCH 4* SR 14-506 M4X0.7 LCGR-4 SR 10400270-25.5 T-15/5 DCLNR/L 3232P-12 RCT 443 TCH 4* SR 14-506 M4X0.7 LCGR-4 SR 10400270-25.5 T-15/5 DCLNR/L 2525M-16 RCT 544 HW 4.0 SR 10402265 LCGR-5 KSP 5 SR 10402267 DCLNR/L 3232P-16 RCT 544 HW 4.0 SR 10402265 LCGR-5 KSP 5 SR 10402267 DCLNR/L 3232P-19 TCN 63 HW 4.0 SR 10402266 LCGR-6 KSP 5 SR 10402267 DCLNR/L 4040S-19 TCN 63 HW 4.0 SR 10402266 LCGR-6 KSP 5 SR 10402267 * Optional, to be ordered separately GAMP GAMF 95º DCLNR/L-JHP-MC 95º Bar Max Rigid Clamp Tools with Channels HF H for High-Pressure Coolant Carrying 80° Rhombic Inserts WF B 95˚ LH Right hand tool shown LF Designation B H HF LF LH WF GAMP(1) GAMF(2) MIID(3) DCLNR/L 2020X-12-JHP-MC 20.0 20.0 20.0 105.00 35.0 25.00 -6.0 -6.0 CNMG 1204 DCLNR/L 2525X-12-JHP-MC 25.0 25.0 25.0 120.00 35.0 32.00 -6.0 -6.0 CNMG 1204 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: CNMA (188) • CNMG-CERMET (183) • CNMG-F3M (185) • CNMG-F3P (181) • CNMG-F3S (186) • CNMG-GN (190) • CNMG-M3M (185) • CNMG-M3P (182) • CNMG-NF (187) • CNMG-NR (190) • CNMG-VL (186) • CNMG-WF (187) • CNMG-WG/NRW (188) • CNMG/CNGG-PP (189) • CNMG/CNGG-SF (187) • CNMG/CNGG-TF (189) • CNMM-M4PW (192) • CNMM-R3P (192) • CNMX-M3/4MW (191) • CNMX-M3/4PW (191) For holders, see pages: VDI-B1/B4AK-JHPMC (841) • VDI-B2/B3A-JHPMC (841) • VDI-B2/B3AK-JHPMC (841) • VDI-C1/C4A-JHPMC (841) • VDI-C1/C4AK-JHPMC (842) • VDI-C2/C3A-JHPMC (842) • VDI-C2/C3AK-JHPMC (842) Spare Parts Designation DCLNR/L 2020X-12-JHP-MC RCT 443 TCH 4* PLG G1/8 TL360 OR 4X3 NBR70 SR 14-506 M4X0.7 LCGR/L-C-4JC SET DCLNL 2525X-12-JHP-MC RCT 443 TCH 4* PLG G1/8 TL360 OR 4X3 NBR70 SR 14-506 M4X0.7 LCGR/L-C-4JC SET DCLNR 2525X-12-JHP-MC RCT 443 PLG G1/8 TL360 SR 14-506 M4X0.7 LCGR/L-C-4JC SET * Optional, to be ordered separately 32 ISCAR
