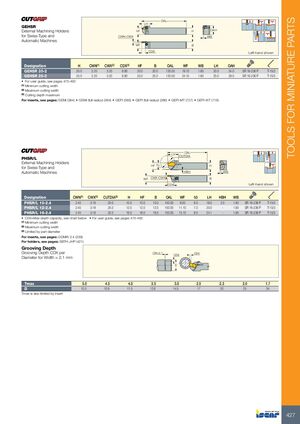

TOOLS FOR MINIATURE PARTS OAL LH GEHSR External Machining Holders HF H OAH for Swiss-Type and CWN-CWX WB Automatic Machines WF B CDX Left-hand shown Designation H CWN(1) CWX(2) CDX(3) HF B OAL WF WB LH OAH GEHSR 20-2 20.0 2.20 3.20 6.80 20.0 20.0 120.00 19.10 1.80 20.0 24.0 SR 16-236 P T-15/3 GEHSR 25-2 25.0 2.20 3.20 6.80 25.0 25.0 120.00 24.10 1.80 20.0 29.0 SR 16-236 P T-15/3 • For user guide, see pages 475-492 (1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum For inserts, see pages: GEMI (384) • GEMI (full radius) (384) • GEPI (385) • GEPI (full radius) (386) • GEPI-MT (727) • GEPI-WT (718) OAL LH CUTDIA PHSR/L External Machining Holders HF h3 H for Swiss-Type and Automatic Machines HBH WB WF CWX-CWX B CDX Left-hand shown Designation CWN(1) CWX(2) CUTDIA(3) H HF B OAL WF h3 LH HBH WB PHSR/L 10-2.4 2.40 3.18 20.0 10.0 10.0 10.0 150.00 9.00 8.0 18.0 2.0 1.90 SR 16-236 P T-15/3 PHSR/L 12-2.4 2.40 3.18 25.0 12.0 12.0 12.0 150.00 11.10 7.0 20.0 - 1.90 SR 16-236 P T-15/3 PHSR/L 16-2.4 2.40 3.18 32.0 16.0 16.0 16.0 150.00 15.10 8.0 24.1 - 1.90 SR 16-236 P T-15/3 • CDX=Max depth capacity, see chart below • For user guide, see pages 475-492 (1) Minimum cutting width (2) Maximum cutting width (3) Limited by part diameter For inserts, see pages: GDMW 2.4 (339) For holders, see pages: SBTH-JHP (421) Grooving Depth Grooving Depth CDX per CW>2.1 CDX CDX Diameter for Width > 2�1 mm D Tmax 5.0 4.5 4.0 3.5 3.0 2.5 2.3 2.0 1.7 D 10�5 10�8 11�5 12�6 14�5 17 20 25 34 Tmax is also limited by insert 427
