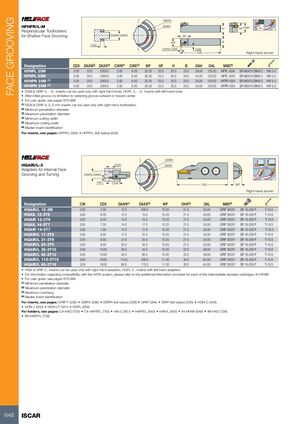

Токарные инструменты Iscar (часть 1) 2026 - страница 650

FACE GROOVING DAXN HFHPR/L-M DAXX H HF OAH Perpendicular Toolholders for Shallow Face Grooving DAXN-DAXX 25 WF B CDX CWN-CWX CDX OAL Right-hand shown Designation CDX DAXN(2) DAXX(3) CWN(4) CWX(5) WF HF H B OAH OAL MIID(6) HFHPL 20M 5.00 20.0 2000.0 3.00 6.00 25.30 20.0 20.0 20.0 29.00 130.00 HFPL 4004 SR M6X16 DIN912 HW 5.0 HFHPL 25M 5.00 20.0 2000.0 3.00 6.00 30.30 25.0 25.0 25.0 34.00 150.00 HFPL 4004 SR M6X16 DIN912 HW 5.0 HFHPR 20M (1) 5.00 20.0 2000.0 3.00 6.00 25.30 20.0 20.0 20.0 29.00 130.00 HFPR 4004 SR M6X16 DIN912 HW 5.0 HFHPR 25M (1) 5.00 20.0 2000.0 3.00 6.00 30.30 25.0 25.0 25.0 34.00 150.00 HFPR 4004 SR M6X16 DIN912 HW 5.0 • DGN & GRIP 4.. - 6.. inserts can be used only with right-hand tools, HGPL 4.. - 6.. inserts with left-hand tools • After initial groove, no limitation to widening groove outward or toward center • For user guide, see pages 676-688 (1) DGN & GRIP 4, 5, 6 mm inserts can be used only with right-hand toolholders. (2) Minimum penetration diameter (3) Maximum penetration diameter (4) Minimum cutting width (5) Maximum cutting width (6) Master insert identification For inserts, see pages: HFPR/L (656) • HFPR/L (full radius) (656) DAXN HGAIR/L-3 CDX DAXX Adapters for Internal Face Grooving and Turning DAXN-DAXX CW OHX OAL WF Right-hand shown Designation CW CDX DAXN(1) DAXX(2) WF OHX(3) OAL MIID(4) HGAIR/L 12-3M 3.00 2.00 12.0 500.0 10.20 21.0 55.00 GRIP 3003Y SR 16-236 P T-15/3 HGAIL 12-3T6 3.00 6.00 12.0 15.0 10.20 21.0 55.00 GRIP 3003Y SR 16-236 P T-15/3 HGAIR 12-3T6 3.00 6.00 12.0 15.0 10.20 21.0 55.00 GRIP 3003Y SR 16-236 P T-15/3 HGAIL 14-3T7 3.00 7.00 14.0 17.0 10.20 21.0 55.00 GRIP 3003Y SR 16-236 P T-15/3 HGAIR 14-3T7 3.00 7.00 14.0 17.0 10.20 21.0 55.00 GRIP 3003Y SR 16-236 P T-15/3 HGAIR/L 17-3T8 3.00 8.00 17.0 21.0 10.20 21.0 55.00 GRIP 3003Y SR 16-236 P T-15/3 HGAIR/L 21-3T9 3.00 9.00 21.0 25.0 10.20 21.0 55.00 GRIP 3003Y SR 16-236 P T-15/3 HGAIR/L 25-3T9 3.00 9.00 25.0 34.0 10.20 21.0 55.00 GRIP 3003Y SR 16-236 P T-15/3 HGAIR/L 35-3T10 3.00 10.00 35.0 45.0 10.30 22.0 56.00 GRIP 3003Y SR 16-236 P T-15/3 HGAIR/L 45-3T10 3.00 10.00 45.0 65.0 10.30 22.0 56.00 GRIP 3003Y SR 16-236 P T-15/3 HGAIR/L 115-3T18 3.00 18.00 115.0 400.0 11.30 30.0 64.00 GRIP 3003Y SR 16-236 P T-15/3 HGAIR/L 65-3T18 3.00 18.00 65.0 115.0 11.30 30.0 64.00 GRIP 3003Y SR 16-236 P T-15/3 • HGN & GRIP 3.. inserts can be used only with right-hand adapters, HGPL 3.. inserts with left-hand adapters. • For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFAIR • For user guide, see pages 676-688 (1) Minimum penetration diameter (2) Maximum penetration diameter (3) Maximum overhang (4) Master insert identification For inserts, see pages: GRIP-T (295) • GRIPA (296) • GRIPA (full radius) (296) • GRIP (294) • GRIP (full radius) (295) • HGN-C (549) • HGN-J (550) • HGN-UT (551) • HGPL (658) For holders, see pages: C#-HAD (700) • C#-HAPR/L (700) • HAI-C (651) • HAPR/L (645) • HAR/L (645) • IH-HFAIR (649) • IM-HAD (708) • IM-HAPR/L (708) 648 ISCAR
