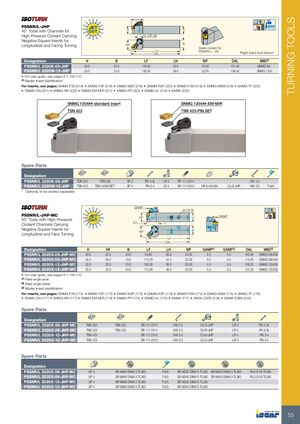

Токарные инструменты Iscar (часть 1) 2026 - страница 57

TURNING TOOLS LH 45º 45º PSSNR/L-JHP Bar Max 45° Tools with Channels for H H High-Pressure Coolant Carrying G 1/8"-28 Negative Square Inserts for WF B Longitudinal and Facing Turning Inside coolant for LF PSSNR/L... 09 OAL Right hand tool shown Designation H B LF LH WF OAL MIID(1) PSSNR/L 2020K-09-JHP 20.0 20.0 125.00 35.0 25.00 131.40 SNMG 09.. PSSNR/L 2525M-12-JHP 25.0 25.0 150.00 38.0 32.00 158.40 SNMG 1204 • For user guide, see pages 6-7,104-110 (1) Master insert identification For inserts, see pages: SNMG-F3S (219) • SNMG-F3P (216) • SNMG-M3P (216) • SNMM-R3P (223) • SNMG-F3M (218) • SNMG-M3M (218) • SNMG-TF (220) • SNMG-GN (221) • SNMG-NR (222) • SNMG-EM-M/R (221) • SNMG-PP (220) • SNMG-VL (219) • SNMA (222) SNMG 1204##-standard insert SNMG 1204##-EM-M/R TSN 423 TSN 423-PIN SET Spare Parts Designation PSSNR/L 2020K-09-JHP TSN 323 TSN 333 SP 3 PN 3-3L LR 3 SR 117-2014 HW 2.5 PSSNR/L 2525M-12-JHP TSN 423 TSN 423M SET* SP 4 PN 3-4 LR 4 SR 117-2010 OR 6.4X0.9N CU-S-JHP HW 3.0 T-8/5 * Optional, to be ordered separately GAMP 3X G1/8 45º 45º PSSNR/L-JHP-MC GAMF HF H 45° Tools with High-Pressure LH Coolant Channels Carrying Negative Square Inserts for B WF Longitudinal and Face Turning LF OAL Designation H HF B LF LH WF GAMP(1) GAMF(2) OAL MIID(3) PSSNR/L 2020X-09-JHP-MC 20.0 20.0 20.0 94.80 30.9 25.00 5.5 5.5 100.90 SNMG 090408 PSSNR/L 2525X-09-JHP-MC 25.0 25.0 25.0 113.20 34.3 32.00 5.5 5.5 119.30 SNMG 090408 PSSNR/L 2020X-12-JHP-MC 20.0 20.0 20.0 100.00 38.3 25.00 5.5 5.5 108.30 SNMG 120408 PSSNR/L 2525X-12-JHP-MC 25.0 25.0 25.0 115.00 38.3 32.00 5.5 5.5 123.30 SNMG 120408 • For user guide, see pages 6-7,104-110 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: SNMG-F3S (175) • SNMG-F3P (173) • SNMG-M3P (173) • SNMM-R3P (178) • SNMG-F3M (174) • SNMG-M3M (174) • SNMG-TF (176) • SNMG-GN (177) • SNMG-NR (177) • SNMG-EM-M/R (176) • SNMG-PP (175) • SNMG-VL (175) • SNMA (177) • SNGA (CER) (218) • SNMA (CBN) (235) Spare Parts Designation PSSNR/L 2020X-09-JHP-MC TSN 323 TSN 333 SR 117-2014 HW 2.5 CU-S-JHP LR 3 PN 3-3L PSSNR/L 2525X-09-JHP-MC TSN 323 TSN 333 SR 117-2014 HW 2.5 CU-R-JHP LR 3 PN 3-3L PSSNR/L 2020X-12-JHP-MC TSN 423 SR 117-2010 HW 3.0 CU-S-JHP LR 4 PN 3-4 PSSNR/L 2525X-12-JHP-MC TSN 423 SR 117-2010 HW 3.0 CU-S-JHP LR 4 PN 3-4 Spare Parts Designation PSSNR/L 2020X-09-JHP-MC SP 3 SR M6X6 DIN913 TL360 T-8/5 SR M3X3 DIN913 TL360 SR M5X5 DIN913 TL360 PLG G1/8 TL360 PSSNR/L 2525X-09-JHP-MC SP 3 SR M6X6 DIN913 TL360 T-8/5 SR M3X3 DIN913 TL360 SR M5X5 DIN913 TL360 PLG G1/8 TL360 PSSNR/L 2020X-12-JHP-MC SP 4 SR M6X6 DIN913 TL360 T-8/5 SR M3X3 DIN913 TL360 PSSNR/L 2525X-12-JHP-MC SP 4 SR M6X6 DIN913 TL360 T-8/5 SR M3X3 DIN913 TL360 55
