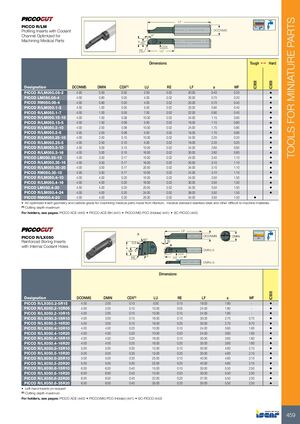

Токарные инструменты Iscar (часть 1) 2026 - страница 461

TOOLS FOR MINIATURE PARTS LF PICCO R/LM Profiling Inserts with Coolant DCONMS Channel Optimized for 8° Machining Medical Parts a WF CDX RE LU Dimensions Tough 1 Hard IC908 IC909 Designation DCONMS DMIN CDX(1) LU RE LF a WF PICCO R/LM050.05-2 4.00 0.50 0.02 2.00 0.02 20.00 0.40 0.20 • PICCO LM050.08-4 4.00 0.80 0.03 4.00 0.02 20.00 0.70 0.20 • PICCO RM050.08-4 4.00 0.80 0.03 4.00 0.02 20.00 0.70 0.40 • PICCO R/LM050.1-5 4.00 1.00 0.05 5.00 0.02 20.00 0.90 0.40 • PICCO R/LM050.1-7 4.00 1.00 0.05 7.00 0.02 22.00 0.90 0.40 • PICCO R/LM050.15-10 4.00 1.50 0.08 10.00 0.02 24.00 1.15 0.60 • PICCO R/LM050.15-5 4.00 1.50 0.08 5.00 0.02 19.00 1.15 0.60 • PICCO R/LM050.2-10 4.00 2.00 0.08 10.00 0.02 24.00 1.70 0.80 • PICCO R/LM050.2-5 4.00 2.00 0.08 5.00 0.02 19.00 1.70 0.80 • PICCO R/LM050.25-10 4.00 2.50 0.10 10.00 0.02 24.00 2.20 0.20 • PICCO R/LM050.25-5 4.00 2.50 0.10 5.00 0.02 19.00 2.20 0.20 • PICCO R/LM050.3-10 4.00 3.00 0.15 10.00 0.02 24.00 2.60 0.60 • PICCO R/LM050.3-16 4.00 3.00 0.15 16.00 0.02 30.00 2.60 0.60 • PICCO LM050.35-10 4.00 3.50 0.17 10.00 0.02 24.00 3.40 1.10 • PICCO R/LM050.35-16 4.00 3.50 0.17 16.00 0.02 30.00 3.10 1.10 • PICCO R/LM050.35-20 4.00 3.50 0.17 20.00 0.02 34.00 3.10 1.10 • PICCO RM050.35-10 4.00 3.50 0.17 10.00 0.02 24.00 3.10 1.10 • PICCO R/LM050.4-10 4.00 4.00 0.20 10.00 0.02 24.00 3.50 1.50 • PICCO R/LM050.4-16 4.00 4.00 0.20 16.00 0.02 30.00 3.50 1.50 • PICCO LM050.4-20 4.00 4.00 0.20 20.00 0.02 34.00 3.50 1.50 • PICCO R/LM050.4-24 4.00 4.00 0.20 24.00 0.02 38.00 3.50 1.50 • PICCO RM050.4-20 4.00 4.00 0.20 20.00 0.02 34.00 3.50 1.50 • • An optimized insert geometry and carbide grade for machining medical parts made from titanium, medical standard stainless steel and other difficult to machine materials. (1) Cutting depth maximum For holders, see pages: PICCO ACE (440) • PICCO ACE-BH (441) • PICCO/MG PCO (Holder) (441) • SC-PICCO (442) LF A DCONMS DMIN PICCO R/LX050 45° 6° Reinforced Boring Inserts 0.2 A with Internal Coolant Holes a WF 6° DMIN≥3 CDX RE 7° LU DMIN<3 Dimensions IC908 Designation DCONMS DMIN CDX(1) LU RE LF a WF PICCO R/LX050.2-5R15 4.00 2.00 0.10 5.00 0.15 19.00 1.80 - • PICCO R/LX050.2-10R05 4.00 2.00 0.10 10.00 0.05 24.00 1.80 - • PICCO R/LX050.2-10R15 4.00 2.00 0.10 10.00 0.15 24.00 1.80 - • PICCO R/LX050.3-16R10 4.00 3.00 0.15 16.00 0.10 30.00 2.70 0.70 • PICCO R/LX050.3-16R20 4.00 3.00 0.15 16.00 0.20 30.00 2.70 0.70 • PICCO R/LX050.4-10R10 4.00 4.00 0.20 10.00 0.10 24.00 3.60 1.60 • PICCO R/LX050.4-10R20 4.00 4.00 0.20 10.00 0.20 24.00 3.60 1.60 • PICCO R/LX050.4-16R10 4.00 4.00 0.20 16.00 0.10 30.00 3.60 1.60 • PICCO R/LX050.4-16R20 4.00 4.00 0.20 16.00 0.20 30.00 3.60 1.60 • PICCO R/LX050.5-15R10 5.00 5.00 0.30 15.00 0.10 30.00 4.60 2.10 • PICCO R/LX050.5-15R20 5.00 5.00 0.30 15.00 0.20 30.00 4.60 2.10 • PICCO R/LX050.5-25R10 5.00 5.00 0.30 25.00 0.10 40.00 4.60 2.10 • PICCO R/LX050.5-25R20 5.00 5.00 0.30 25.00 0.20 40.00 4.60 2.10 • PICCO R/LX050.6-15R10 6.00 6.00 0.40 15.00 0.10 30.00 5.50 2.50 • PICCO R/LX050.6-15R20 6.00 6.00 0.40 15.00 0.20 30.00 5.50 2.50 • PICCO R/LX050.6-22R20 6.00 6.00 0.40 22.00 0.20 37.00 5.50 2.50 • PICCO R/LX050.6-35R20 6.00 6.00 0.40 35.00 0.20 50.00 5.50 2.50 • • Left-hand inserts on request (1) Cutting depth maximum For holders, see pages: PICCO ACE (440) • PICCO/MG PCO (Holder) (441) • SC-PICCO (442) 459
