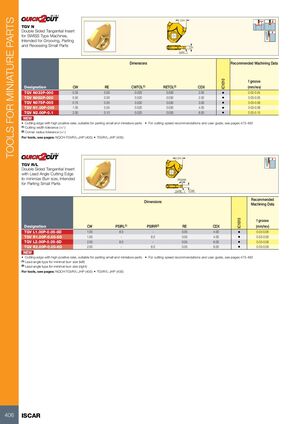

TOOLS FOR MINIATURE PARTS CDX TGV N Double Sided Tangential Insert for SWISS Type Machines, Intended for Grooving, Parting and Recessing Small Parts CW 2xRE Dimensions Recommended Machining Data f groove IC1010 Designation CW RE CWTOL(1) RETOL(2) CDX (mm/rev) TGV N033P-000 0.33 0.00 0.020 0.030 2.00 • 0.02-0.04 TGV N050P-000 0.50 0.00 0.020 0.030 2.50 • 0.03-0.05 TGV N075P-005 0.75 0.05 0.020 0.030 3.00 • 0.03-0.06 TGV N1.00P-005 1.00 0.05 0.020 0.030 4.00 • 0.03-0.08 TGV N2.00P-0.1 2.00 0.10 0.020 0.030 6.00 • 0.03-0.10 NEW • Cutting edge with high positive rake, suitable for parting small and miniature parts • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: NQCH-TGVR/L-JHP (405) • TGVR/L-JHP (405) CDX TGV R/L Double Sided Tangential Insert with Lead Angle Cutting Edge to minimize Burr size, Intended PSIRR for Parting Small Parts 2xRE CW Recommended Dimensions Machining Data f groove IC1010 Designation CW PSIRL(1) PSIRR(2) RE CDX (mm/rev) TGV L1.00P-0.05-8D 1.00 8.0 - 0.05 4.00 • 0.03-0.06 TGV R1.00P-0.05-8D 1.00 - 8.0 0.05 4.00 • 0.03-0.06 TGV L2.00P-0.05-8D 2.00 8.0 - 0.05 6.00 • 0.03-0.08 TGV R2.00P-0.05-8D 2.00 - 8.0 0.05 6.00 • 0.03-0.08 NEW • Cutting edge with high positive rake, suitable for parting small and miniature parts • For cutting speed recommendations and user guide, see pages 475-492 (1) Lead angle type for minimal burr size (left) (2) Lead angle type for minimal burr size (right) For tools, see pages: NQCH-TGVR/L-JHP (405) • TGVR/L-JHP (405) 406 ISCAR
