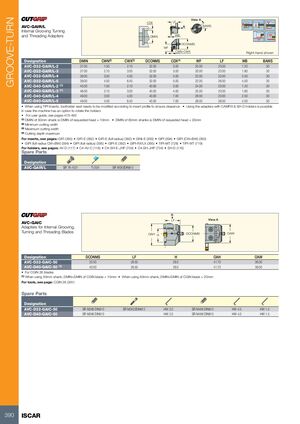

GROOVE-TURN View A CDX LF AVC-GAIR/L A BAWS Internal Grooving Turning and Threading Adapters DMIN WB DCONMS WF CWN-CWX Right-hand shown Designation DMIN CWN(2) CWX(3) DCONMS CDX(4) WF LF WB BAWS AVC-D32-GAIR/L-2 37.00 1.50 2.10 32.00 3.00 20.00 23.00 1.20 30 AVC-D32-GAIR/L-3 37.00 2.10 3.00 32.00 3.00 20.00 23.00 1.80 30 AVC-D32-GAIR/L-4 39.00 3.00 4.50 32.00 5.00 22.00 23.00 2.50 30 AVC-D32-GAIR/L-5 39.00 4.50 6.40 32.00 5.00 22.00 26.00 4.00 30 AVC-D40-GAIR/L-2 (1) 45.00 1.50 2.10 40.00 3.00 24.00 23.00 1.20 30 AVC-D40-GAIR/L-3 (1) 46.00 2.10 3.00 40.00 4.00 25.00 23.00 1.80 30 AVC-D40-GAIR/L-4 49.00 3.00 4.50 40.00 7.00 28.00 23.00 2.50 30 AVC-D40-GAIR/L-5 49.00 4.50 6.40 40.00 7.00 28.00 26.00 4.00 30 • When using TIPI inserts, toolholder seat needs to be modified according to insert profile to ensure clearance • Using the adapters with CAMFIX & SH-D holders is possible in case the machine has an option to rotate the holders • For user guide, see pages 475-492 (1) DMIN of 50mm shank is DMIN of requested head + 10mm • DMIN of 60mm shanks is DMIN of requested head + 20mm (2) Minimum cutting width (3) Maximum cutting width (4) Cutting depth maximum For inserts, see pages: GIFI (395) • GIFI-E (392) • GIFI-E (full radius) (392) • GINI-E (393) • GIPI (394) • GIPI (CW
