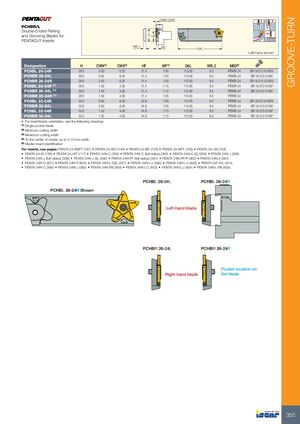

GROOVE-TURN CWN-CWX PCHBR/L Double-Ended Parting and Grooving Blades for H HF PENTACUT Inserts WB_2 WF OAL Left-hand shown Designation H CWN(2) CWX(3) HF WF(4) OAL WB_2 MIID(5) PCHBL 26-24R 26.0 0.50 6.20 21.4 7.00 110.00 8.5 PENTA 24 SR 16-212-01397L PCHBR 26-24L 26.0 0.50 6.20 21.4 7.00 110.00 8.5 PENTA 24 SR 16-212-01397 PCHBR 26-24R 26.0 0.50 6.20 21.4 1.50 110.00 8.5 PENTA 24 SR 16-212-01397L PCHBL 26-34R (1) 26.0 1.50 4.00 21.4 7.15 110.00 8.5 PENTA 34 SR 16-212-01397 PCHBR 26-34L (1) 26.0 1.50 4.00 21.4 7.15 110.00 8.5 PENTA 34 SR 16-212-01397 PCHBR 26-34R (1) 26.0 1.50 4.00 21.4 1.35 110.00 8.5 PENTA 34 PCHBL 32-24R 32.0 0.50 6.20 24.8 7.00 110.00 8.5 PENTA 24 SR 16-212-01397L PCHBR 32-24L 32.0 0.50 6.20 24.8 7.00 110.00 8.5 PENTA 24 SR 16-212-01397 PCHBL 32-34R 32.0 1.50 4.00 24.8 7.15 110.00 8.5 PENTA 34 SR 16-212-01397 PCHBR 32-34L 32.0 1.50 4.00 24.8 7.15 110.00 8.5 PENTA 34 SR 16-212-01397 • For insert/blade orientation, see the following drawings (1) Single pocket blade (2) Minimum cutting width (3) Maximum cutting width (4) To the center of inserts up to 4.15 mm width (5) Master insert identification For inserts, see pages: PENTA 24-BSPT (767) • PENTA 24-ISO (742) • PENTA 24-MT (725) • PENTA 24-NPT (763) • PENTA 24-UN (753) • PENTA 24-W (759) • PENTA 24-WT (717) • PENTA 24N-C (359) • PENTA 24N-C (full radius) (360) • PENTA 24N-C-SL (356) • PENTA 24N-J (358) • PENTA 24N-J (full radius) (359) • PENTA 24N-J-SL (356) • PENTA 24N-PF (full radius) (361) • PENTA 24N-PF/P (360) • PENTA 24N-Z (361) • PENTA 24R-C (601) • PENTA 24R-P (602) • PENTA 24R/L-DSL (357) • PENTA 24R/L-J (598) • PENTA 24R/L-Z (600) • PENTA 34F-R/L (674) • PENTA 34N-C (364) • PENTA 34N-J (365) • PENTA 34N-PB (364) • PENTA 34R/L-C (603) • PENTA 34R/L-J (604) • PENTA 34R/L-PB (605) PCHBL 26-24L PCHBL 26-24R PCHBL 26-24R Shown Lock Left-hand blade Lock PCHBR 26-24L PCHBR 26-24R Pocket location on Right-hand blade the blade 355
