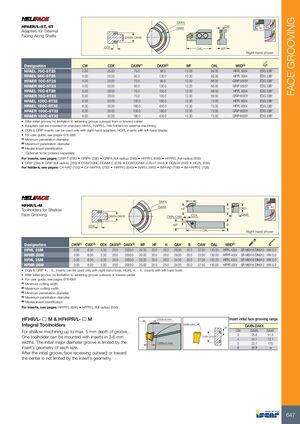

Токарные инструменты Iscar (часть 1) 2026 - страница 649

FACE GROOVING DAXN HFAER/L-5T, 6T DAXX CW Adapters for External Facing Along Shafts DAXN-DAXX CDX OAL WF Right-hand shown Designation CW CDX DAXN(1) DAXX(2) WF OAL MIID(3) HFAEL 70C-5T25 5.00 25.00 70.0 95.0 12.20 66.00 HFPL 5004 EDG 33B* HFAEL 95C-5T25 5.00 25.00 95.0 130.0 12.20 66.00 HFPL 5004 EDG 33B* HFAER 70C-5T25 5.00 25.00 70.0 95.0 12.20 66.00 GRIP 5005Y EDG 33B* HFAER 95C-5T25 5.00 25.00 95.0 130.0 12.20 66.00 GRIP 5005Y EDG 33B* HFAEL 70C-6T28 6.00 28.00 70.0 100.0 12.30 69.00 HFPL 6004 EDG 33B* HFAER 70C-6T28 6.00 28.00 70.0 100.0 12.30 69.00 GRIP 6030Y EDG 33B* HFAEL 100C-6T32 6.00 32.00 100.0 180.0 12.30 73.00 HFPL 6004 EDG 33B* HFAEL 180C-6T32 6.00 32.00 180.0 400.0 12.30 73.00 HFPL 6004 EDG 33B* HFAER 100C-6T32 6.00 32.00 100.0 180.0 12.30 73.00 GRIP 6030Y EDG 33B* HFAER 180C-6T32 6.00 32.00 180.0 400.0 12.30 73.00 GRIP 6030Y EDG 33B* • After initial groove, no limitation to widening groove outward from or toward center • Adapters can be mounted on standard HAR/L, HAPR/L, HAI holders for external machining • DGN & GRIP inserts can be used only with right-hand adapters, HGPL inserts with left-hand blades • For user guide, see pages 676-688 (1) Minimum penetration diameter (2) Maximum penetration diameter (3) Master insert identification * Optional, to be ordered separately For inserts, see pages: GRIP-T (295) • GRIPA (296) • GRIPA (full radius) (296) • HFPR/L (656) • HFPR/L (full radius) (656) • GRIP (294) • GRIP (full radius) (295) • DGN/DGNC/DGNM-C (539) • DGN/DGNM-J/JS/JT (544) • DGN-W (540) • HGPL (658) For holders, see pages: C#-HAD (700) • C#-HAPR/L (700) • HAPR/L (645) • HAR/L (645) • IM-HAD (708) • IM-HAPR/L (708) DAXN LH HFHR/L-M DAXX HF H OAH Toolholders for Shallow Face Grooving DAXN-DAXX CWN-CWX CDX OAW CDX WF B OAL Right-hand shown Designation CWN(1) CWX(2) CDX DAXN(3) DAXX(4) WF HF H OAH B OAW OAL MIID(5) HFHL 20M 3.00 6.00 5.30 20.0 2000.0 20.00 20.0 20.0 29.00 20.0 22.50 130.00 HFPL 4004 SR M6X16 DIN912 HW 5.0 HFHR 20M 3.00 6.00 5.30 20.0 2000.0 20.00 20.0 20.0 29.00 20.0 22.50 130.00 HFPR 4004 SR M6X16 DIN912 HW 5.0 HFHL 25M 3.00 6.00 5.30 20.0 2000.0 25.00 25.0 25.0 34.00 25.0 27.50 150.00 HFPL 4004 SR M6X16 DIN912 HW 5.0 HFHR 25M 3.00 6.00 5.30 20.0 2000.0 25.00 25.0 25.0 34.00 25.0 27.50 150.00 HFPR 4004 SR M6X16 DIN912 HW 5.0 • DGN & GRIP 4.. - 6.. inserts can be used only with right-hand tools, HGPL 4.. - 6.. inserts with left-hand tools • After initial groove, no limitation to widening groove outward or toward center • For user guide, see pages 676-688 (1) Minimum cutting width (2) Maximum cutting width (3) Minimum penetration diameter (4) Maximum penetration diameter (5) Master insert identification For inserts, see pages: HFPR/L (656) • HFPR/L (full radius) (656) HFHR/L- o M & HFHPR/L- o M CWX=6 mm Insert initial face grooving range Integral Toolholders DAXN-DAXX CW DAXN-DAXX For shallow machining up to max� 5 mm depth of groove� CW DAXN DAXX 3 25�6 51�5 One toolholder can be mounted with inserts in 3-6 mm DAXN-DAXX 4 24�1 73�7 widths� The initial major diameter groove is limited by the CWN=3 mm 5 22�1 170 insert’s geometry of each size� 6 20�8 ∞ After the initial groove, face recessing outward or toward the center is not limited by the insert’s geometry� 647
