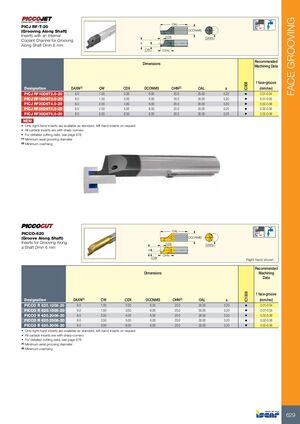

Токарные инструменты Iscar (часть 1) 2026 - страница 631

FACE GROOVING OAL PICJ RF-T-20 (Grooving Along Shaft) DCONMS Inserts with an Internal CDX DAXN Coolant Channel for Grooving a Along Shaft Dmin 6 mm CW OHN Recommended Dimensions Machining Data f face-groove IC908 Designation DAXN(1) CW CDX DCONMS OHN(2) OAL a (mm/rev) PICJ RF10D6T2.0-20 6.0 1.00 2.00 6.00 20.0 35.00 5.20 • 0.01-0.04 PICJ RF15D6T3.0-20 6.0 1.50 3.00 6.00 20.0 35.00 5.20 • 0.01-0.05 PICJ RF20D6T4.0-20 6.0 2.00 4.00 6.00 20.0 35.00 5.20 • 0.02-0.06 PICJ RF25D6T5.0-20 6.0 2.50 5.00 6.00 20.0 35.00 5.20 • 0.02-0.06 PICJ RF30D6T6.0-20 6.0 3.00 6.00 6.00 20.0 35.00 5.20 • 0.02-0.06 NEW • Only right-hand inserts are available as standard, left-hand inserts on request • All carbide inserts are with sharp corners • For detailed cutting data, see page 678 (1) Minimum axial grooving diameter (2) Minimum overhang OAL PICCO-620 (Groove Along Shaft) DCONMS Inserts for Grooving Along CDX DAXN a Shaft Dmin 6 mm a OHN CW Right-hand shown Recommended Dimensions Machining Data f face-groove IC1008 Designation DAXN(1) CW CDX DCONMS OHN(2) OAL a (mm/rev) PICCO R 620.1006-20 6.0 1.00 2.00 6.00 20.0 35.00 5.20 • 0.01-0.04 PICCO R 620.1506-20 6.0 1.50 3.00 6.00 20.0 35.00 5.20 • 0.01-0.05 PICCO R 620.2006-20 6.0 2.00 4.00 6.00 20.0 35.00 5.20 • 0.02-0.06 PICCO R 620.2506-20 6.0 2.50 5.00 6.00 20.0 35.00 5.20 • 0.02-0.06 PICCO R 620.3006-20 6.0 3.00 6.00 6.00 20.0 35.00 5.20 • 0.02-0.06 • Only right-hand inserts are available as standard, left-hand inserts on request • All carbide inserts are with sharp corners • For detailed cutting data, see page 678 (1) Minimum axial grooving diameter (2) Minimum overhang 629
