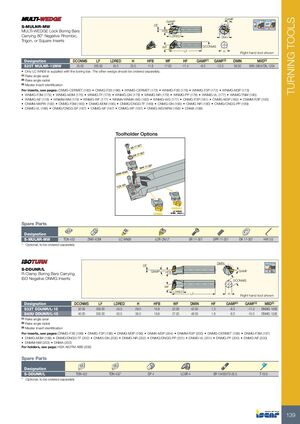

TURNING TOOLS GAMF GAMP HF 95º S-MULNR-MW 95º MULTI-WEDGE Lock Boring Bars HFB Carrying 80° Negative Rhombic, LDRED DMIN Trigon, or Square Inserts WF DCONMS LF H Right hand tool shown Designation DCONMS LF LDRED H HFB WF HF GAMP(1) GAMF(2) DMIN MIID(3) S25T MULNR-12MW 25.00 300.00 45.0 23.0 11.6 17.00 -11.4 -6.0 -12.0 36.00 WM..0804/CN..1204 • Only LC WN08 is supplied with the boring bar. The other wedge should be ordered separately. (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: CNMG-CERMET (183) • CNMG-F3S (186) • WNMG-CERMET (173) • WNMG-F3S (176) • WNMG-F3P (172) • WNMG-M3P (173) • WNMG-F3M (175) • WNMG-M3M (175) • WNMG-TF (178) • WNMG-GN (179) • WNMG-NR (179) • WNMG-PP (178) • WNMG-VL (177) • WNMG-TNM (180) • WNMG-NF (176) • WNMM-NM (179) • WNMG-WF (177) • WNMA/WNMA-WG (180) • WNMG-WG (177) • CNMG-F3P (181) • CNMG-M3P (182) • CNMM-R3P (192) • CNMM-M4PW (192) • CNMG-F3M (185) • CNMG-M3M (185) • CNMG/CNGG-TF (189) • CNMG-GN (190) • CNMG-NR (190) • CNMG/CNGG-PP (189) • CNMG-VL (186) • CNMG/CNGG-SF (187) • CNMG-NF (187) • CNMG-WF (187) • CNMG-WG/NRW (188) • CNMA (188) Toolholder Options 07 17-3 SR 7 7-30 DK 1 07 17-3 SPR I -4CM ## ZNW W## -12M MW NR/L ##-4 MUL U LNR/L S-M 423 TCN WNMG LC WN08 WNM_ 08(43_) CNMG LCR CN12 / LCL CN12 CNM_ 12(43_) Spare Parts Designation S-MULNR-MW TCN 423 ZNW 4CMI LC WN08 LCR CN12* SR 17-307 SPR 17-307 DK 17-307 HW 3.0 * Optional, to be ordered separately DMIN HF 93º-95º S-DDUNR/L GAMP GAMF 30º HFB MAX R-Clamp Boring Bars Carrying ISO Negative DNMG Inserts DCONMS WF LDRED LF H Right hand tool shown Designation DCONMS LF LDRED H HFB WF DMIN HF GAMP(1) GAMF(2) MIID(3) S32T DDUNR/L-15 32.00 300.00 45.0 29.0 15.8 22.00 42.00 1.3 -6.0 -11.0 DNMG 1506 S40U DDUNR/L-15 40.00 350.00 50.0 36.0 19.8 27.00 48.00 1.8 -6.0 -10.0 DNMG 1506 (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: DNMG-F3S (198) • DNMG-F3P (196) • DNMG-M3P (196) • DNMX-M3P (204) • DNMM-R3P (203) • DNMG-CERMET (199) • DNMG-F3M (197) • DNMG-M3M (198) • DNMG/DNGG-TF (202) • DNMG-GN (202) • DNMG-NR (202) • DNMG/DNGG-PP (201) • DNMG-VL (201) • DNMG-PF (200) • DNMG-NF (200) • DNMM-NM (203) • DNMA (203) For holders, see page: HSK A63TM ABB (839) Spare Parts Designation S-DDUNR/L TDN 422 TDN 432* SP 4 LCGR-4 SR 10400270-25.5 T-15/5 * Optional, to be ordered separately 139
