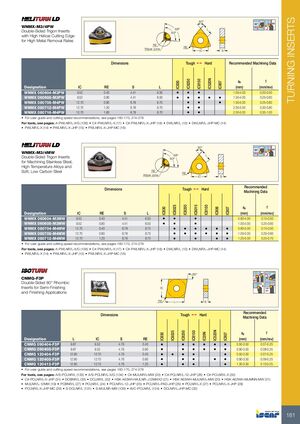

TURNING INSERTS 80° 95º 95° WNMX-M3/4PW 95° 88º L Double-Sided Trigon Inserts 80º with High Helical Cutting Edge for High Metal Removal Rates RE RE Wiper zone IC S Dimensions Tough 1 Hard Recommended Machining Data IC520N ap f IC8250 IC8150 IC830 IC807 Designation IC RE S L (mm) (mm/rev) WNMX 060604-M3PW 9.52 0.40 4.41 6.50 • • • 1.00-4.00 0.20-0.50 WNMX 060608-M3PW 9.52 0.80 4.41 6.50 • • • • • 1.50-4.00 0.25-0.60 WNMX 080708-M4PW 12.70 0.80 6.78 8.70 • • • 1.50-5.00 0.25-0.60 WNMX 080712-M4PW 12.70 1.20 6.78 8.70 • • 2.00-5.00 0.30-0.80 WNMX 080716-M4PW 12.70 1.60 6.78 8.70 • • 2.00-5.00 0.30-1.00 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PWLNR/L-X/G (138) • C#-PWLNR/L-X (17) • C#-PWLNR/L-X-JHP (18) • DWLNR/L (13) • DWLNR/L-JHP-MC (14) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) 80° 95º 95° WNMX-M3/4MW 95° 88º L Double-Sided Trigon Inserts 80º for Machining Stainless Steel, High Temperature Alloys and Soft, Low Carbon Steel RE RE Wiper zone IC S Recommended Dimensions Tough 1 Hard Machining Data ap f IC6025 IC8250 IC6015 IC8150 IC830 IC806 IC807 Designation IC RE S L (mm) (mm/rev) WNMX 060604-M3MW 9.52 0.40 4.41 6.50 • • • 0.80-4.00 0.15-0.50 WNMX 060608-M3MW 9.52 0.80 4.41 6.50 • • • 1.00-5.00 0.20-0.60 WNMX 080704-M4MW 12.70 0.40 6.78 8.70 • • • • • • 0.80-5.00 0.15-0.50 WNMX 080708-M4MW 12.70 0.80 6.78 8.70 • • • • • • 1.00-5.00 0.20-0.60 WNMX 080712-M4MW 12.70 1.20 6.78 8.70 • • • • 1.20-5.00 0.25-0.70 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PWLNR/L-X/G (138) • C#-PWLNR/L-X (17) • C#-PWLNR/L-X-JHP (18) • DWLNR/L (13) • DWLNR/L-JHP-MC (14) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) 80° 95º CNMG-F3P 95º 95º Double-Sided 80° Rhombic 75° Inserts for Semi-Finishing IC 75º and Finishing Applications RE L S Recommended Dimensions Tough 1 Hard Machining Data IC520N ap f IC6025 IC8250 IC8150 IC20N IC830 IC807 Designation L IC S RE (mm) (mm/rev) CNMG 090404-F3P 9.67 9.52 4.76 0.40 • • • • • • 0.50-3.50 0.07-0.25 CNMG 090408-F3P 9.67 9.52 4.76 0.80 • • • • • • 0.90-3.50 0.08-0.25 CNMG 120404-F3P 12.90 12.70 4.76 0.40 • • • • • 0.50-3.50 0.07-0.25 CNMG 120408-F3P 12.90 12.70 4.76 0.80 • • • • • 0.90-3.50 0.08-0.25 CNMG 120412-F3P 12.90 12.70 4.76 1.20 • • • • 1.30-3.50 0.10-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PCLNR/L (133) • A/S-PCLNR/L-X/G (134) • C#-MULNR/L-MW (20) • C#-PCLNR/L-12-JHP (26) • C#-PCLNR/L-X (30) • C#-PCLNR/L-X-JHP (31) • DCBNR/L (33) • DCLNR/L (32) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • PCBNR/L (27) • PCLNR/L (24) • PCLNR/L-12-JHP (25) • PCLNR/L-PAD-JHP (25) • PCLNR/L-X (27) • PCLNR/L-X-JHP (28) • PCLNR/L-X-JHP-MC (29) • S-DCLNR/L (131) • S-MULNR-MW (139) • AVC-PCLNR/L (124) • DCLNR/L-JHP-MC (32) 181
