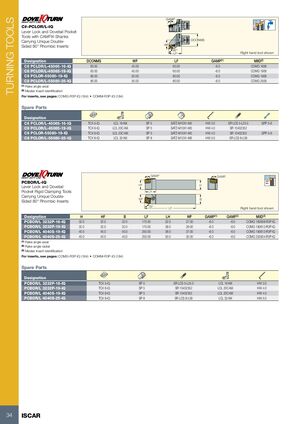

Токарные инструменты Iscar (часть 1) 2026 - страница 36

TURNING TOOLS GAMP 95º C#-PCLOR/L-IQ 95º Lever Lock and Dovetail Pocket Tools with CAMFIX Shanks Carrying Unique Double- DCONMS WF Sided 80° Rhombic Inserts 95° LF Right hand tool shown Designation DCONMS WF LF GAMP(1) MIID(2) C6 PCLOR/L-45065-16-IQ 63.00 45.00 65.00 -6.0 COMG 1606 C6 PCLOR/L-45065-19-IQ 63.00 45.00 65.00 -6.0 COMG 1906 C8 PCLOR-55080-19-IQ 80.00 55.00 80.00 -6.0 COMG 1906 C8 PCLOR/L-55080-25-IQ 80.00 55.00 80.00 -6.0 COMG 2509 (1) Rake angle axial (2) Master insert identification For inserts, see pages: COMG-R3P-IQ (184) • COMM-R3P-IQ (184) Spare Parts Designation C6 PCLOR/L-45065-16-IQ TCX 5-IQ LCL 16-NX SP 5 SATZ-M10X1-M5 HW 3.0 SR LCS 5-L25.5 SPP 5-6 C6 PCLOR/L-45065-19-IQ TCX 6-IQ LCL 20C-NX SP 5 SATZ-M10X1-M5 HW 4.0 SR 10402352 C8 PCLOR-55080-19-IQ TCX 6-IQ LCL 20C-NX SP 5 SATZ-M10X1-M5 HW 4.0 SR 10402352 SPP 5-6 C8 PCLOR/L-55080-25-IQ TCX 8-IQ LCL 32-NX SP 8 SATZ-M12X1-M6 HW 5.0 SR LCS 8-L39 GAMP GAMF PCBOR/L-IQ 75º HF H Lever Lock and Dovetail Pocket Rigid Clamping Tools LH Carrying Unique Double- WF B Sided 80° Rhombic Inserts 75° LF Right hand tool shown Designation H HF B LF LH WF GAMP(1) GAMF(2) MIID(3) PCBOR/L 3232P-16-IQ 32.0 32.0 32.0 170.00 32.0 27.00 -6.0 -6.0 COMG 160608-R3P-IQ PCBOR/L 3232P-19-IQ 32.0 32.0 32.0 170.00 38.0 28.00 -6.0 -6.0 COMG 190612-R3P-IQ PCBOR/L 4040S-19-IQ 40.0 40.0 40.0 250.00 38.0 37.00 -6.0 -6.0 COMG 190612-R3P-IQ PCBOR/L 4040S-25-IQ 40.0 40.0 40.0 250.00 50.0 35.00 -6.0 -6.0 COMG 250924-R3P-IQ (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: COMG-R3P-IQ (184) • COMM-R3P-IQ (184) Spare Parts Designation PCBOR/L 3232P-16-IQ TCX 5-IQ SP 5 SR LCS 5-L25.5 LCL 16-NX HW 3.0 PCBOR/L 3232P-19-IQ TCX 6-IQ SP 5 SR 10402352 LCL 20C-NX HW 4.0 PCBOR/L 4040S-19-IQ TCX 6-IQ SP 5 SR 10402352 LCL 20C-NX HW 4.0 PCBOR/L 4040S-25-IQ TCX 8-IQ SP 8 SR LCS 8-L39 LCL 32-NX HW 5.0 34 ISCAR
